9E-926 38 SmartControl™ Meter & TouchPoint™
Operation Instructions
Table 2c: SmartControl Diagnostic LED Indicators
Item Reference
Designation
Description Function
1 D6 Receive LED Receive LED, turns on when control is receiving data from
other controlson the PRISM-Sub
2 D8 Receive LED Receive LED, turns on when control is receiving data from
other controlson the PRISM-Main
3 D9 Transmit LED Transmit LED, turns on when control is receiving data from
other controlson the PRISM-Main or PRISM-Sub
4 D10 Diagnostic LED Diagnostic LED, turns on when any of the Aux inputs is acti-
vated
5 D13 Status LED Status LED, the LED is red and is used to show the status of
the SmartControl (see table for different patterns)
6 D17 Diagnostic LED Diagnostic LED, turns on when Aux 1 output is on
7 D18 Diagnostic LED Diagnostic LED, turns on when Aux 2 output is on
8 D19 Diagnostic LED Diagnostic LED, turns on when Aux 4 (rear) output is on
9 D20 Diagnostic LED Diagnostic LED, turns on when Aux 3 (front) output is on
10 D21 Status LED Status LED, the LED is yellow and is used to show the status
of the SmartControl (see table for different patterns)
11 D22 Diagnostic LED Diagnostic LED, turns on when Dump Solenoid output is on
12 D23 Diagnostic LED Diagnostic LED, turns on when Shutoff Solenoid output is on

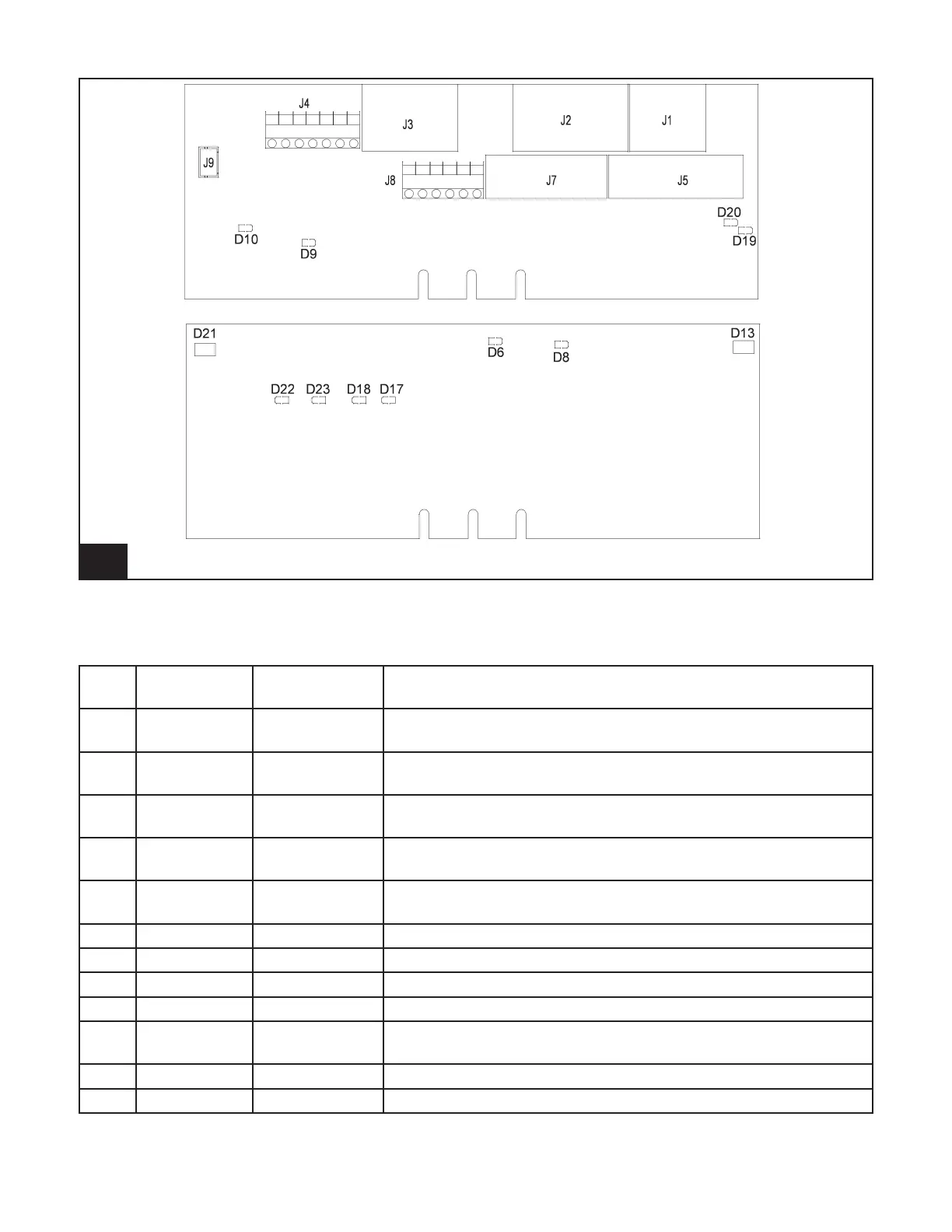

27b. SmartControl Connector and Diagnostic LED Locations l925_7 and l925_8
