M410 User Manual 15
Setup
Recycling the Cartridge

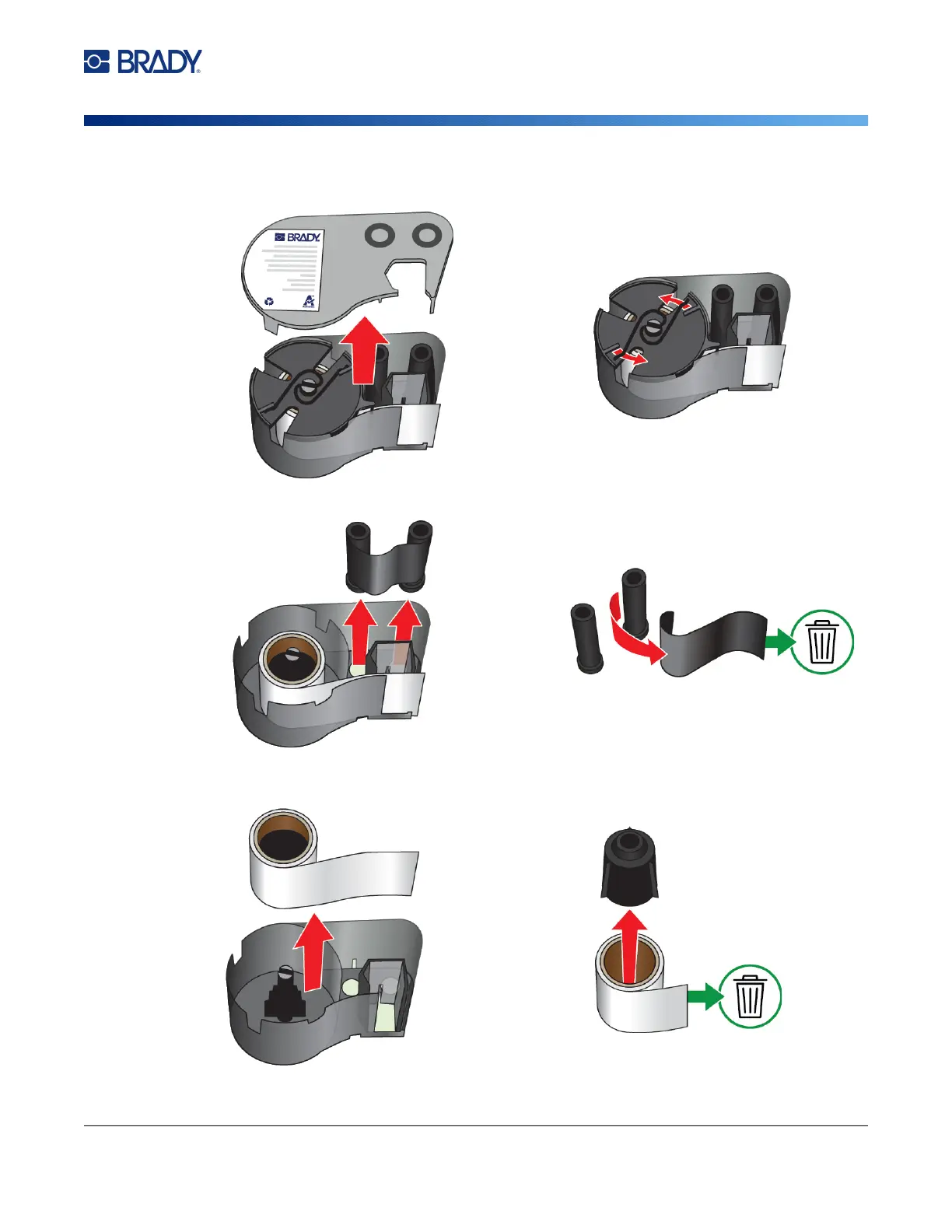

3. Separate the top of the housing from the base. Pry one leg of the metal spring on top of the
disk out from the clip. The spring and disk will pop out of the housing.
4. Remove the ribbon spools. Unwind and detach the ribbon from its spools.
5. Lift the labels out of the cartridge housing and then remove the black plastic cylinder from
inside the label core.
