M410 User Manual 54
Label Types
Flags
Flags

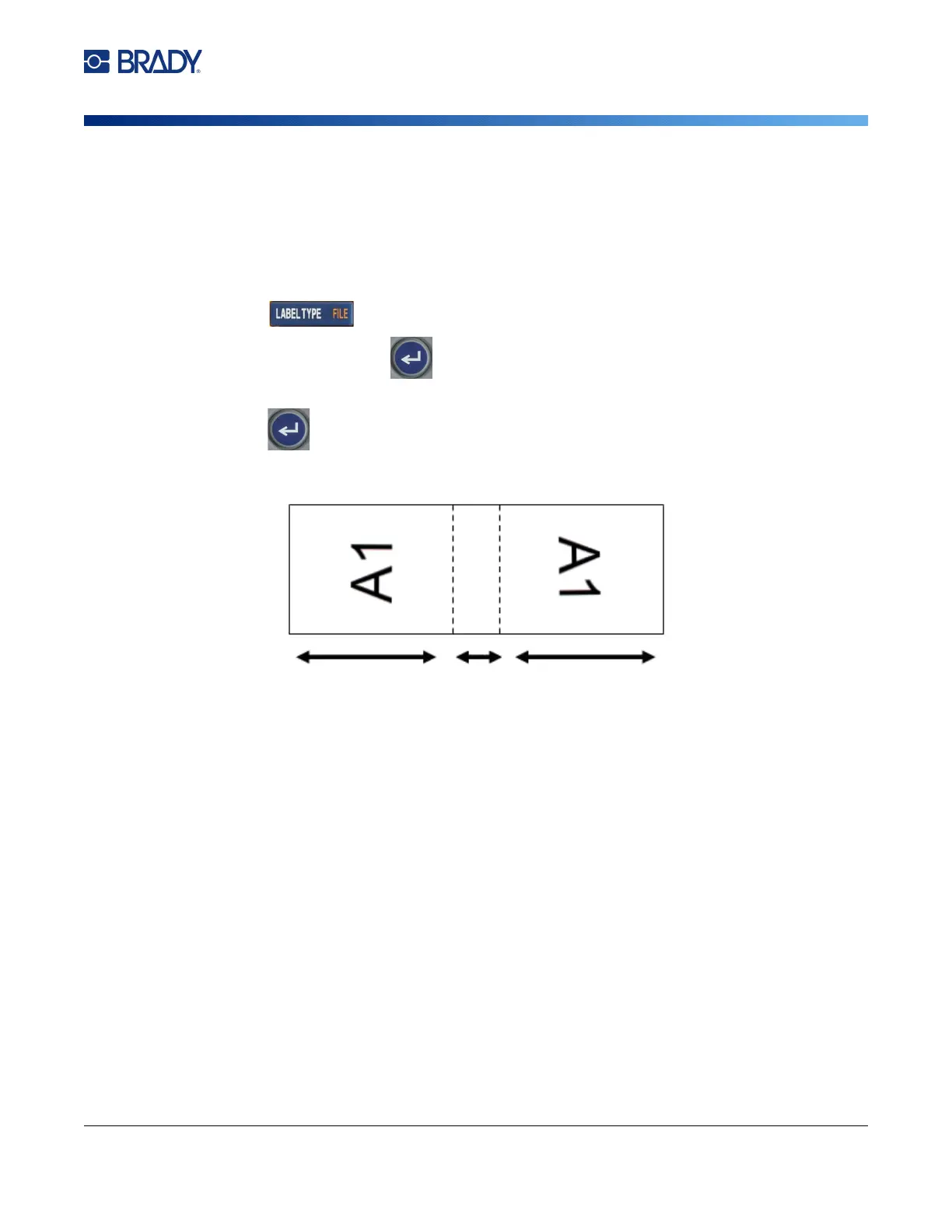

A flag label wraps around a wire or cable, with the ends joined together to form a flag. The flag label
type is designed to work with continuous labels or specific multi-area pre-sized labels.
To create a flag label:
1. Press .
2. Select Flags and press
.
The printer displays the settings screen for flags.
3. Select the desired layout. Navigate to the circle above the image of the desired layout and
press
.
4. If continuous label supply is installed, navigate to the Flag Length field and enter the length of
the flag (the part that contains the text). (Flag Length is not available for pre-sized labels.)
5. Navigate to the Cable Diameter field and enter the diameter of the wire or cable to which the
flag will be applied. (Cable Diameter is not av
ailable for pre-sized labels.)
The range for the cable diameter is 0.25 inches (6.35 mm) to 8 inches (203.2 mm).
By entering the diameter of the wire or cable, the system automatic
ally calculates an
additional length of label to allow complete wrap of the wire or cable with additional label
material left for the flag.
Flag
Length
Flag
Length
Cable
Diameter
(wraps
around
cable)
