Motor Control Enclosure
The Motor Control Enclosure accepts 115/230 VAC and supplies
appropriate power to the drive motor. The enclosure also contains the
motor ON/OFF power switch and optional motor speed controller for
variable speed motor applications.

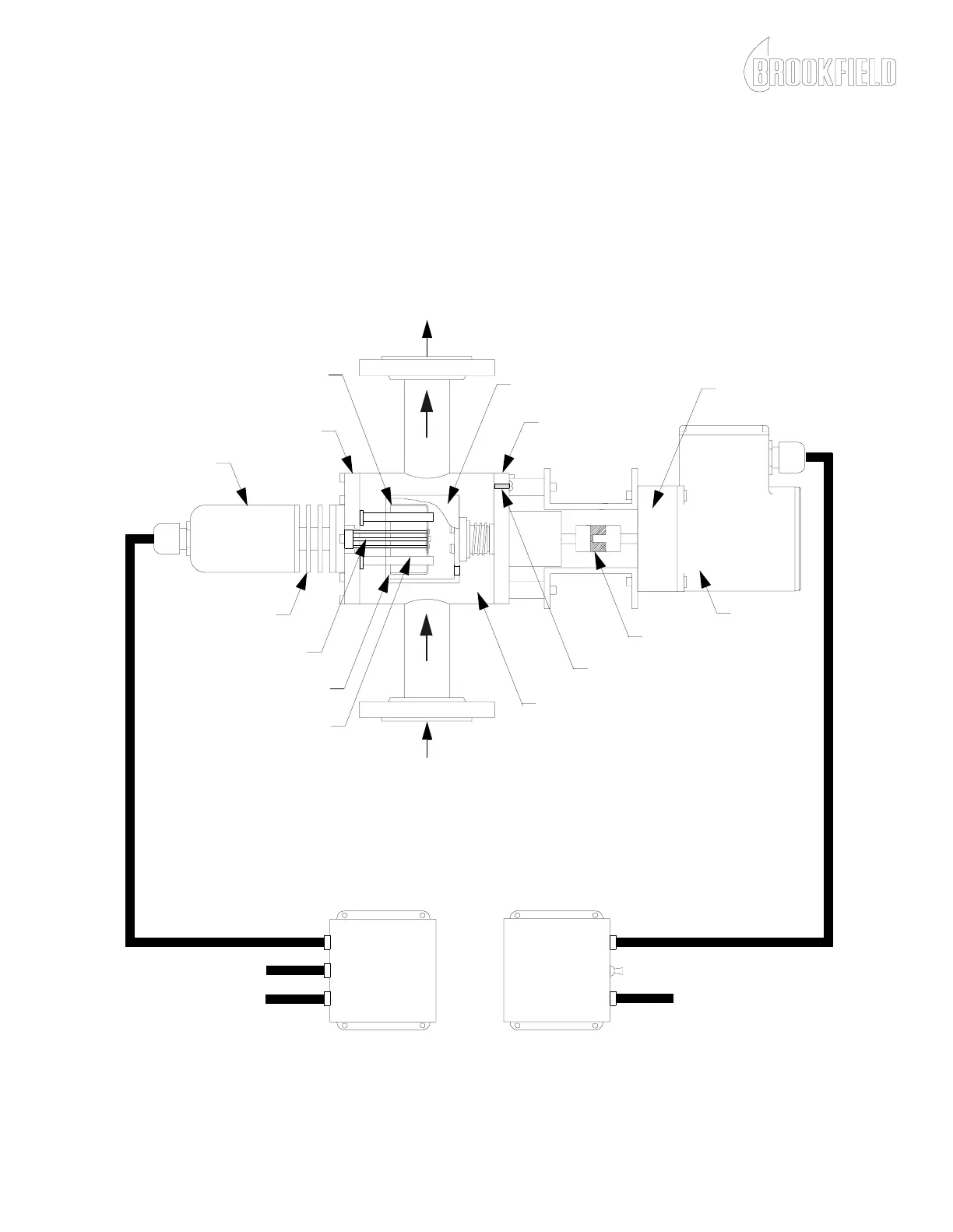

Figure 1-5: Typical Model TT100 In-Line Viscometer Component Identification
(NEMA 4 Shown)
HEAT BAFFLE
TORSION ELEMENT
SENSING ENDCAP
STATOR
MEASURING ANNULUS
BLEED SCREW
MEASURING CHAMBER
DRIVE COUPLING
GEARBOX
DRIVE MOTOR
115/230 VAC
50/60 HZ
ON/OFF SWITCH
MOTOR
CONTROL
ENCLOSURE
115/230 VAC
50/60 HZ
TORQUE SENSOR
ENCLOSURE
ELECTRONICS
OUTPUT SIGNAL 4 - 20 mA
ROTOR
INLET
OUTLET
PRODUCT
STREAM
PRODUCT
STREAM
MOTOR CABLE
SENSING CABLE
DRIVE ENDCAP
TORQUE SENSOR
ASSEMBLY
STOP POST
