Brookfield TT100 - Figure 3-9: Stator Direction of Rotation

Calibration
3-20 P/N M/97-520
15. Rotate the stator as shown in Figure 3-9. The DVM should increase
in a positive direction. If the DVM reading does not increase in a
positive direction, loosen the Microsyn field coil mounting screws
and rotate the field coil to obtain the next possible 0 ± .2 VDC
position. Tighten the screws.

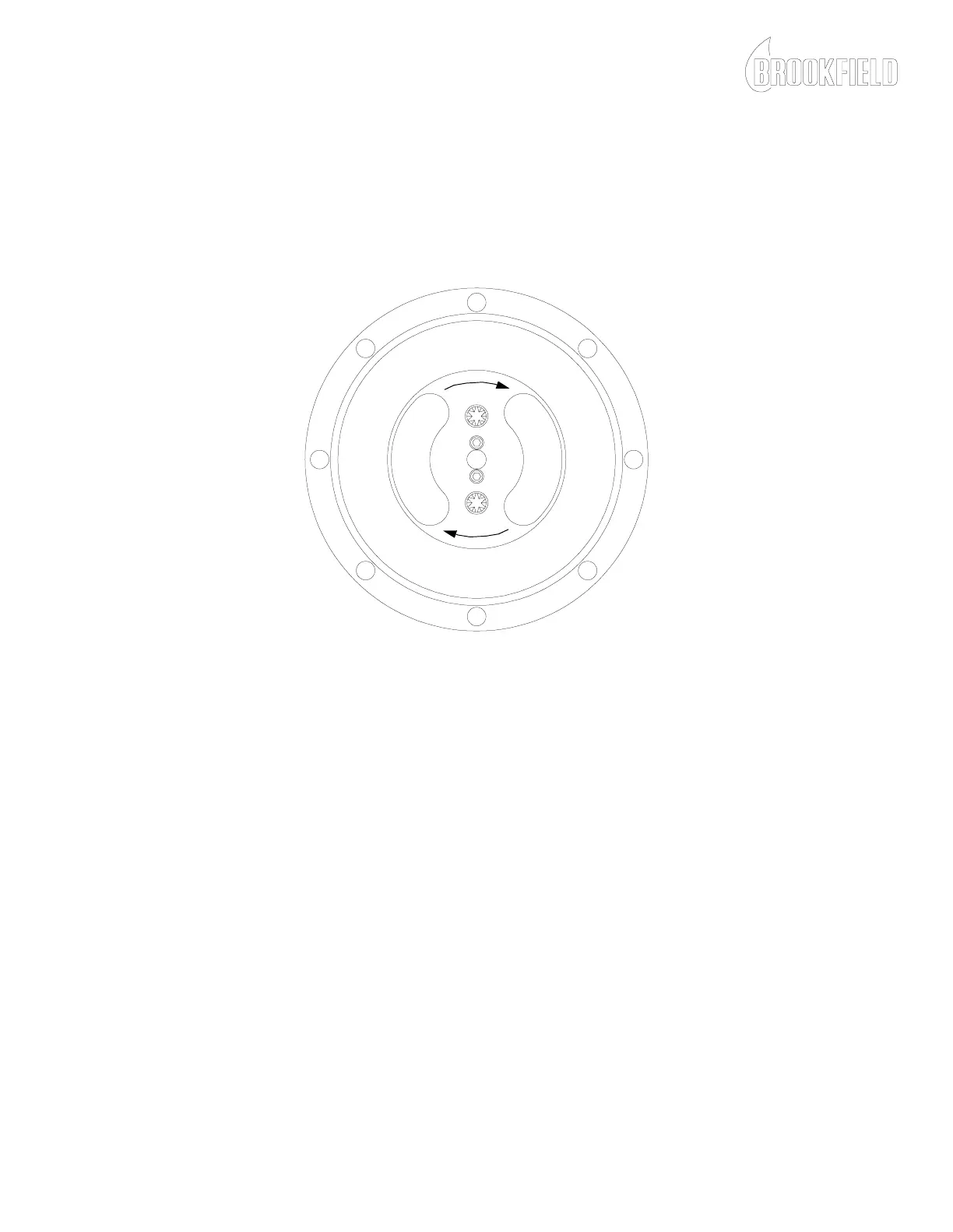

Figure 3-9: Stator Direction of Rotation
16. Rotate the stator once again as shown in Figure 3-9. The DVM
should increase in a positive direction.
17. Proceed with Fine Zero Voltage Calibration.
