(2) Release the hooks of the separation pad ASSY from the paper tray.
(3) Press both side arms of the separation pad ASSY to remove the pins, and remove the
separation pad ASSY from the paper tray.
(4) Remove the separation pad spring from the separation pad ASSY.

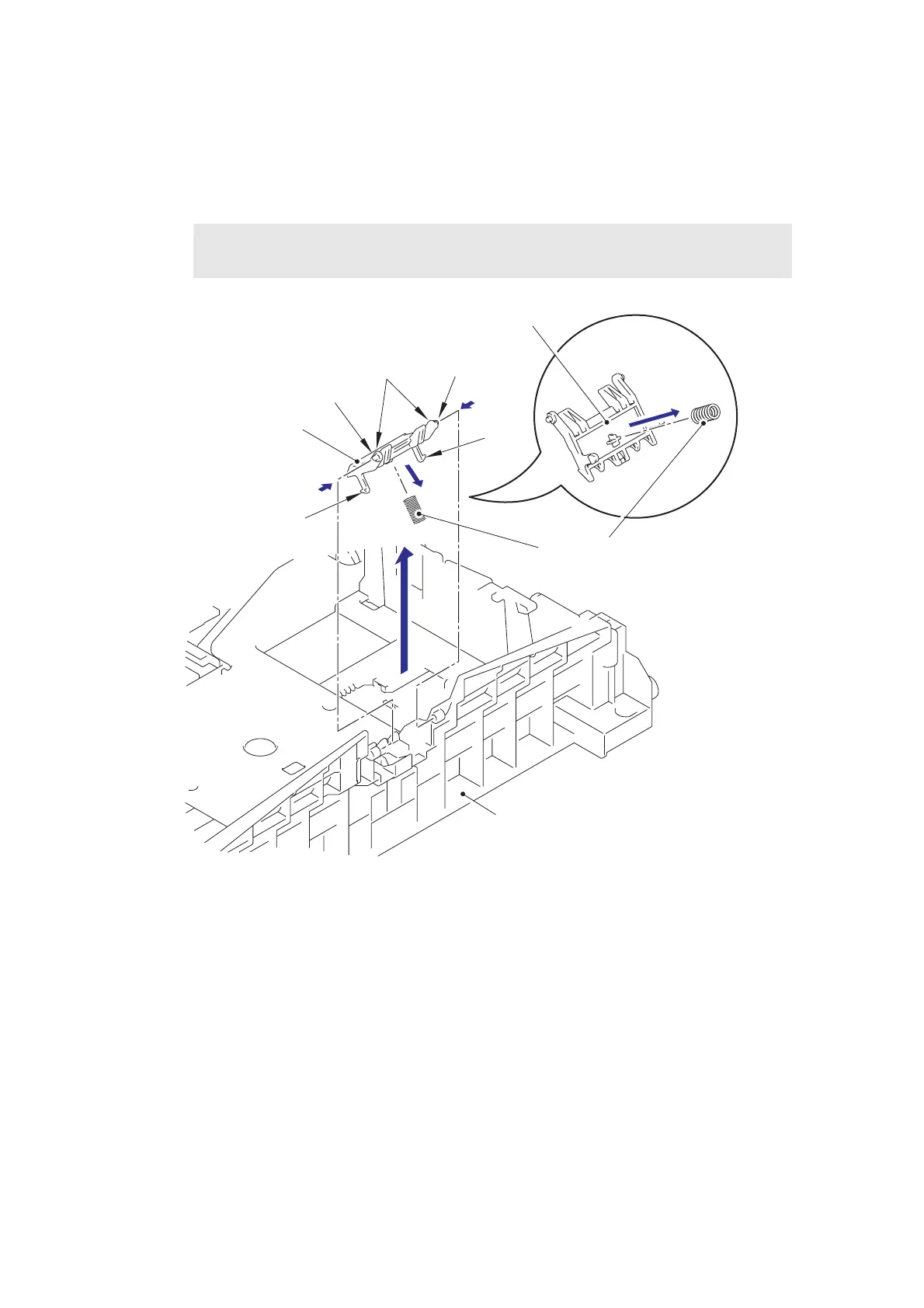

Fig. 3-10
Note:
• Be careful not to lose the separation pad spring.
3b
4
3a
3a
Separation pad ASSY
Paper tray
Separation pad ASSY
Pin
Hook
Hook
Arms
Pin
Separation pad spring
