Brother MFC-7365DN Service Manual

3-31
Confidential

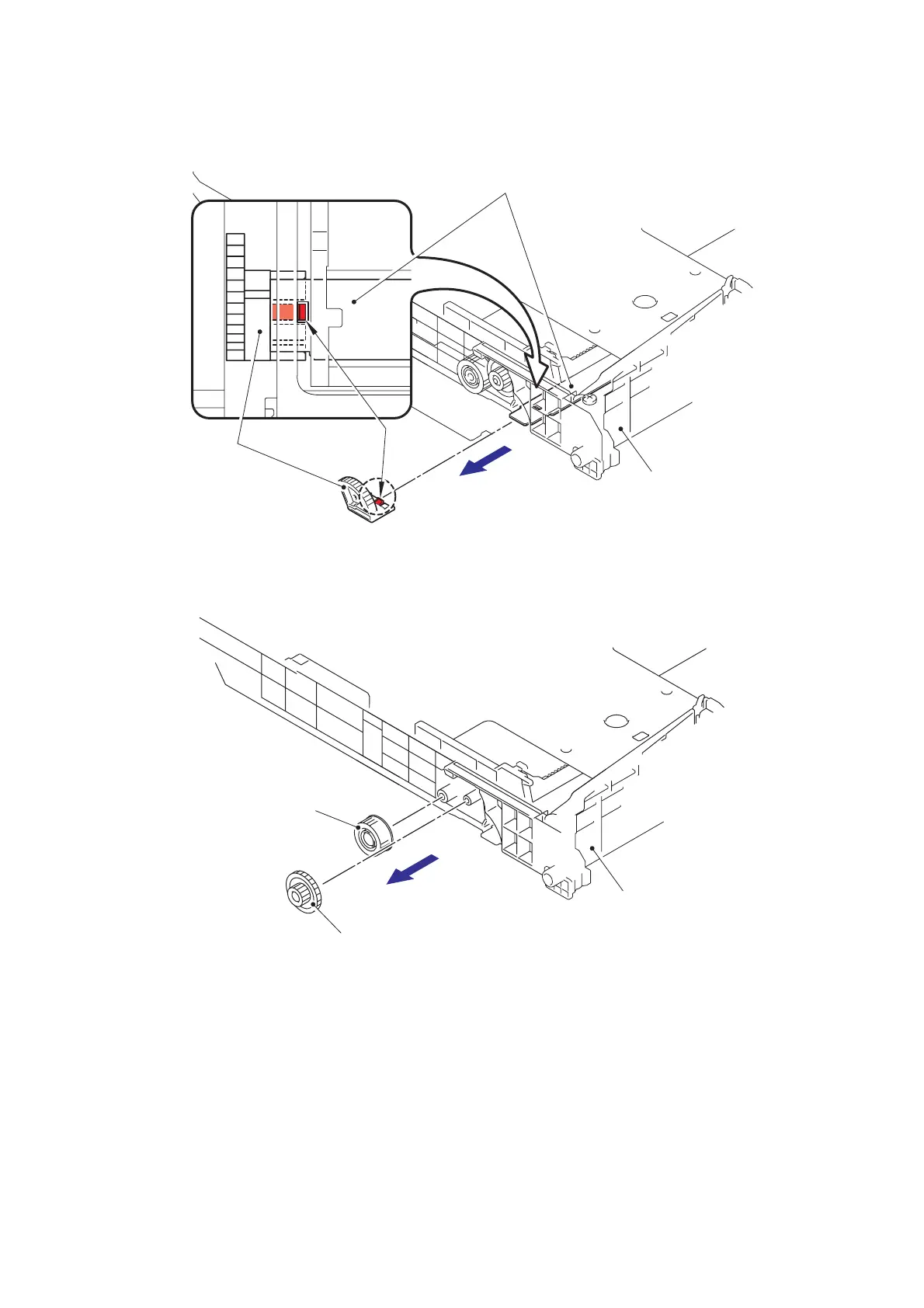

(5) Push the hook of the lift gear 46 while pushing up the plate up plate, and remove the lift
gear 46.
Fig. 3-11
(6) Remove the gear Z23M10Z14M75 and the gear Z19M10.
Fig. 3-12
Hook
Paper tray
Plate up plate
Lift gear 46
Gear Z19M10
Gear Z23M10Z14M75
Paper tray
