(4) Disconnect the connectors of the center thermistor harness ASSY and the side
thermistor harness ASSY from the paper eject sensor PCB ASSY.
(5) Release the harnesses of the center thermistor harness ASSY and the side thermistor
harness ASSY from the guides of the main frame L ASSY.

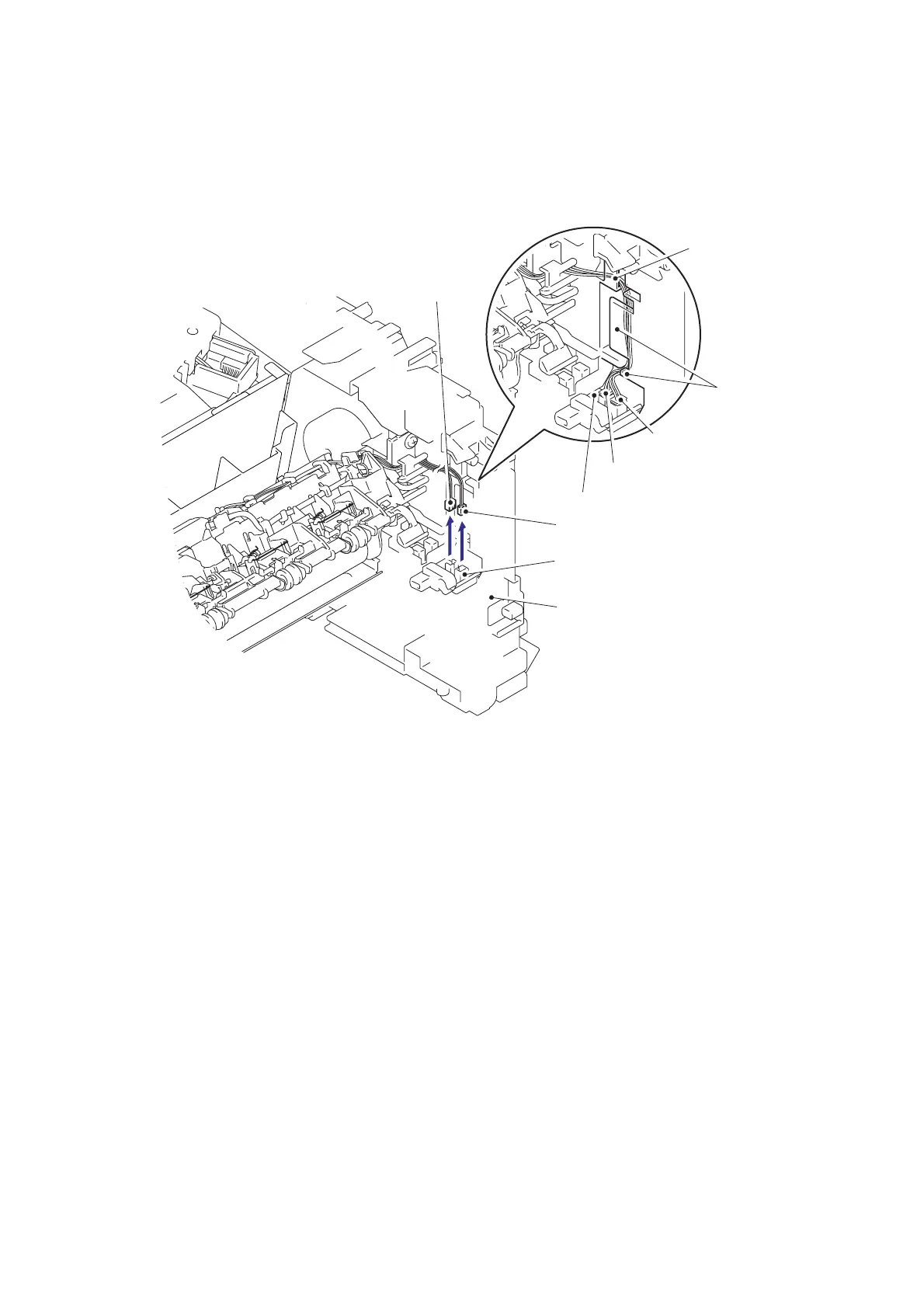

Fig. 3-70
Guide
Guides
Center thermistor
harness ASSY
Side thermistor
harness ASSY
Side thermistor harness ASSY
Center thermistor harness ASSY
Main frame L ASSY
Paper eject sensor PCB ASSY
Paper eject sensor PCB ASSY

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
