(4) Remove the screw pan (S/P washer) M3.5x6 screw to remove the FG harness from the
low voltage power supply PCB ASSY.
(5) Remove the taptite flat B M3x10 screw to remove the Inlet of the low voltage power
supply PCB ASSY.
(6) Release the hooks to remove the power switch of the low voltage power supply PCB
ASSY.
(7) Remove the taptite bind B M4x12 screw.
(8) Release the harness of the low voltage power supply PCB ASSY from the guide of the
main frame R ASSY.

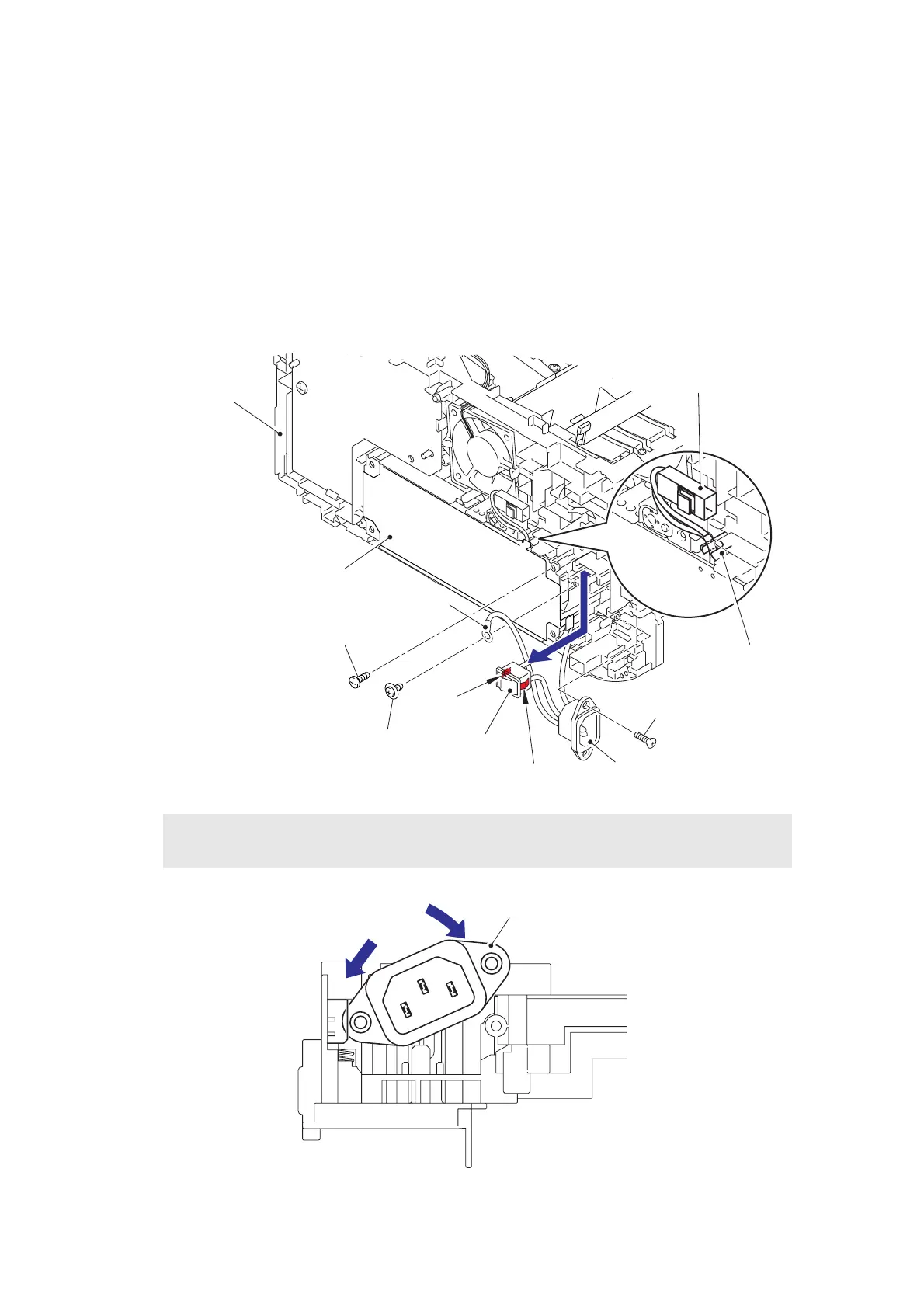

Fig. 3-73
Fig. 3-74
Assembling Note:
• When assembling the inlet, attach as shown in the figure below.
Inlet
Low voltage power
supply PCB ASSY
Low voltage power supply PCB ASSY
Guide
Power switch
FG harness
Taptite flat B M3x10
Taptite bind B M4x12
Main frame R ASSY
Screw pan
(S/P washer) M3.5x6
Hook
Hook
2
1
Inlet
