Brother MFC-L8850CDW Service Manual

3-90
Confidential
<Assembling procedure>

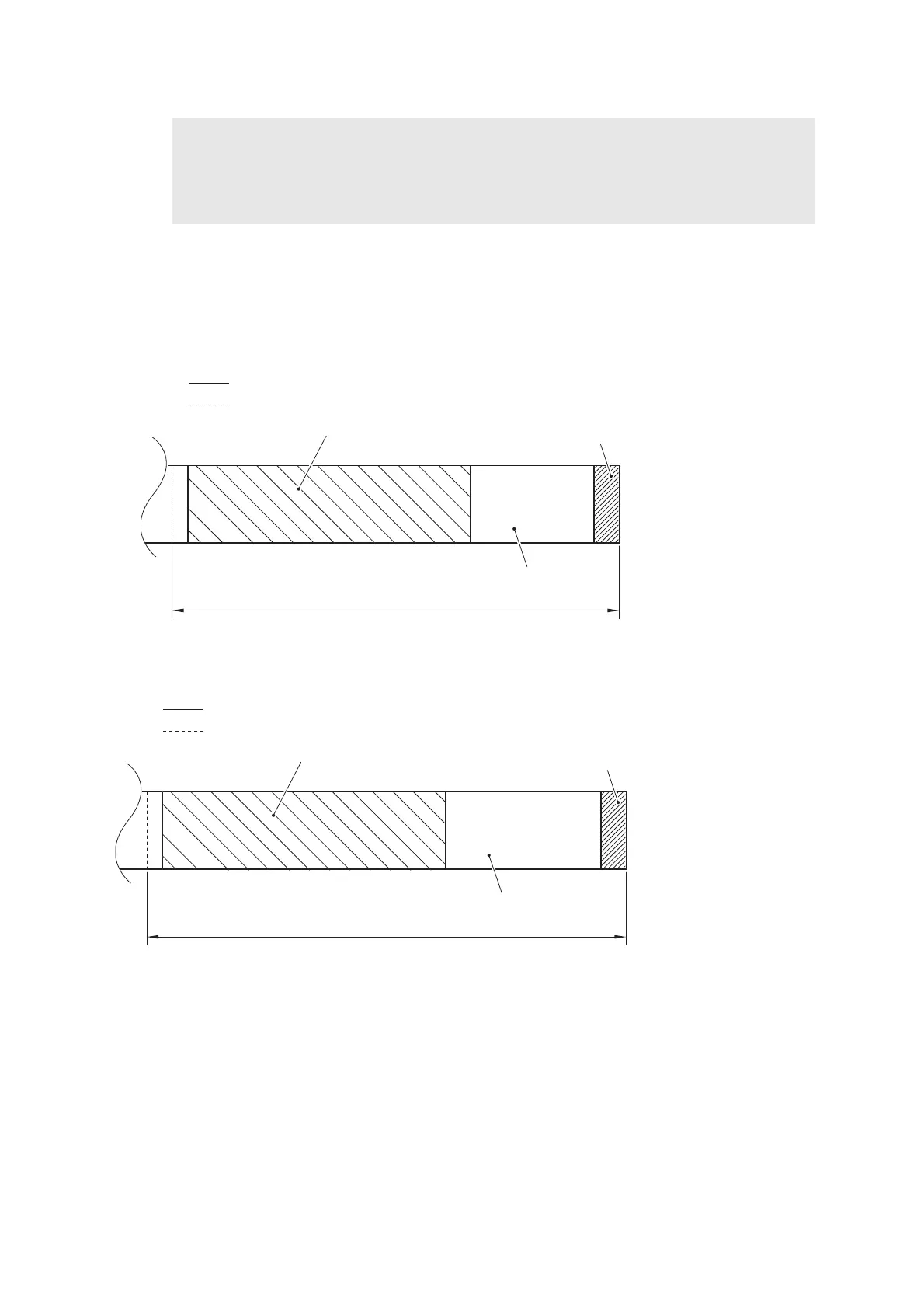

(1) Fold the Second side CIS flat cable at the Second side CIS unit side as shown in the
how-to-fold figure below.
■ A4 model
Fig. 3-102
■ Legal model
Fig. 3-103
Assembling Note:
Since the Second side CIS flat cable might be broken when you remove it from the Flat
cable holder, be sure to replace it with a new Second side CIS flat cable.
When assembling a new Second side CIS flat cable, be sure to assemble it in accordance
with the following procedure.
Fold down
Fold back
200±2 mm
Second side CIS flat cable
Supporting tape
<To be connected to
Surface of the Supporting plate
(Back side: Terminal surface)
Second side CIS unit>
Fold down
Fold back
Second side CIS flat cable
210±2 mm
Supporting tape
Surface of the Supporting plate
(Back side: Terminal surface)
<To be connected to
Second side CIS unit>

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
