Brother MFC-L8850CDW Service Manual

3-91
Confidential

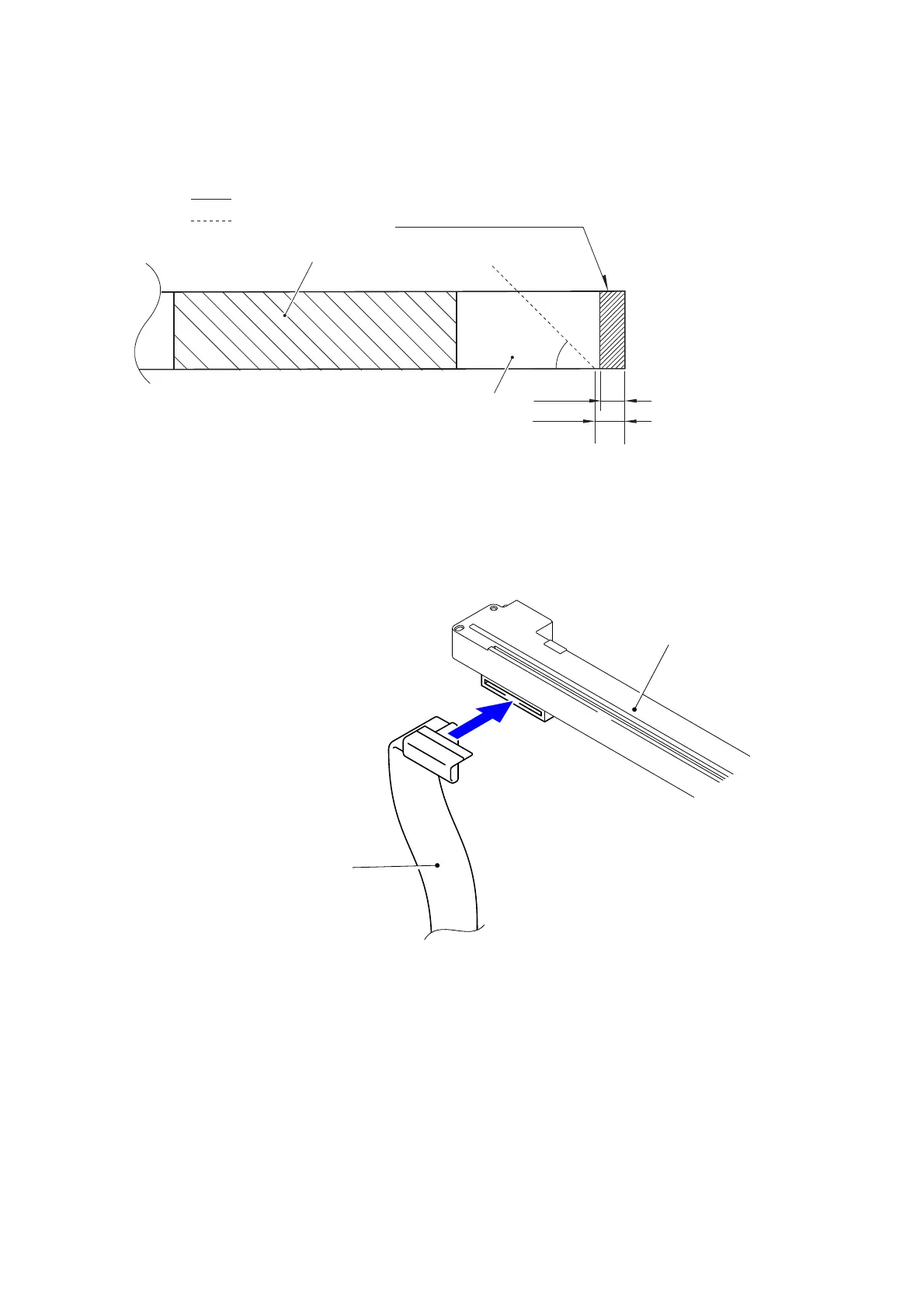

(2) Fold the Second side CIS flat cable at the Second side CIS unit side as shown in the
how-to-fold figure below.
Fig. 3-104
(3) Mount the Second side CIS flat cable at the Second side CIS unit side to the Second side
CIS unit.
Fig. 3-105
Fold down
Fold back
9±1 mm
45°
(8 mm)
Supporting tape
Second side CIS flat cable
Fold the flat cable at the edge
Surface of the Supporting plate
(Back side: Terminal surface)
of the Supporting plate.
<To be connected to
Second side CIS unit>
Second side CIS flat cable
Second side CIS unit

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
