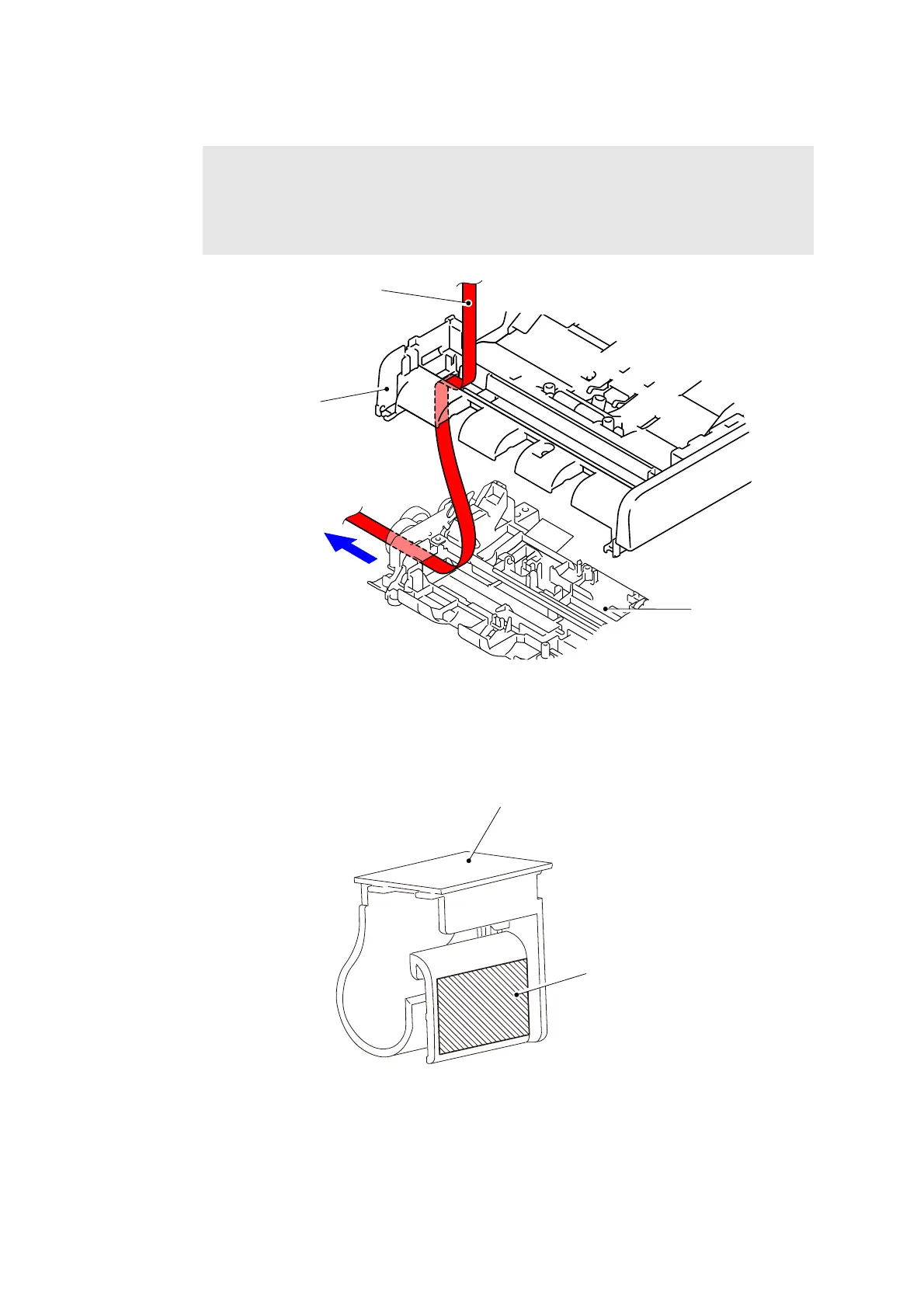

(4) Pass the Second side CIS flat cable through the ADF unit.
Fig. 3-106
(5) Affix double-sided adhesive tape to the Flat cable holder as shown in the figure below.
(If the double-sided adhesive tape has already been affixed, be sure to remove it, and
then affix new double-sided adhesive tape.)
Fig. 3-107
Note:
Remove the Upper ADF chute from the ADF unit in advance.
(Refer to “9.28 ADF Cover/Document Detection Sensor PCB ASSY/ First Side Docu-
ment Scanning Position Sensor PCB ASSY/Second Side Document Scanning Position
Sensor PCB ASSY (Duplex Scanning Model Only)” in this chapter
.)
Upper ADF chute
Second side CIS flat cable
Lower ADF chute
Flat cable holder
Double-sided adhesive tape

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
