Brother MFC-L8850CDW Service Manual

3-93
Confidential

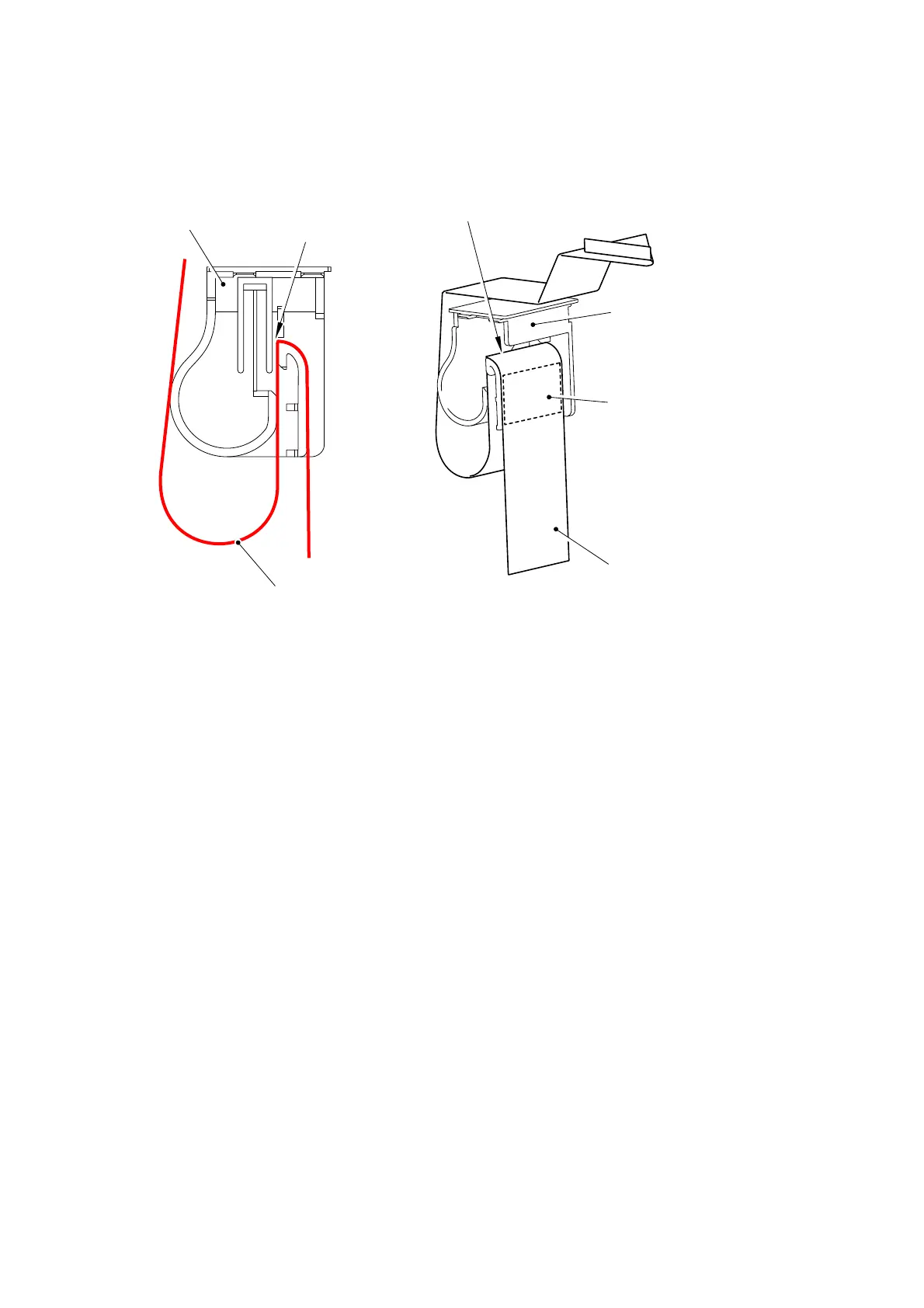

(6) Align the Second side CIS flat cable to the angle of the Rib of the Flat cable holder and
pass it through the Flat cable holder as shown in the figure below, and then affix it to the
double-sided adhesive tape affixed to the Flat cable holder.
Fig. 3-108
Flat cable holder
Flat cable holder
Second side CIS flat cable
<To be connected to
Rib (Align the folded area to this part.)
Pass the harness through here.
Affix it to the double-sided
adhesive tape.
Second side CIS unit>
Second side CIS flat cable
