Brother MFC-L8850CDW Service Manual

3-94
Confidential

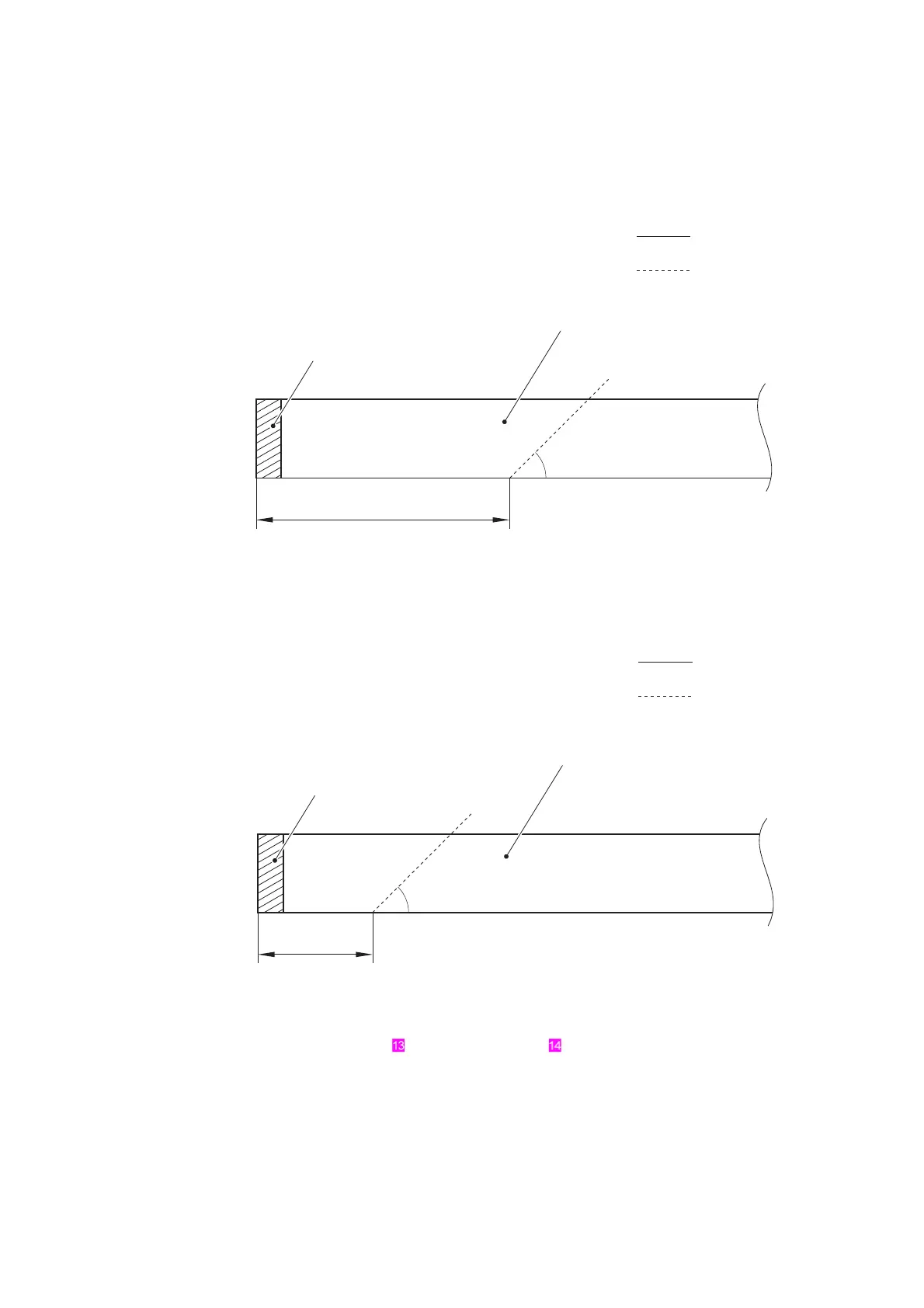

(7) Fold the Second side CIS flat cable at the Main PCB ASSY side as shown in the how-to-
fold figure below.
■ A4 model
Fig. 3-109
■ Legal model
Fig. 3-110
Harness routing: Refer to “ADF (A4 model)”, “ ADF (Legal model)”
Fold down
Fold back
<To be connected to
45°
80±1 mm
Second side CIS flat cable
Surface of the Supporting plate
(Back side: Terminal surface)
Main PCB>
Fold down
Fold back
<To be connected to
Second side CIS flat cable
45°
35±1 mm
Surface of the Supporting plate
(Back side: Terminal surface)
Main PCB>
