Brother MFC-L8850CDW - Page 260

3-96
Confidential

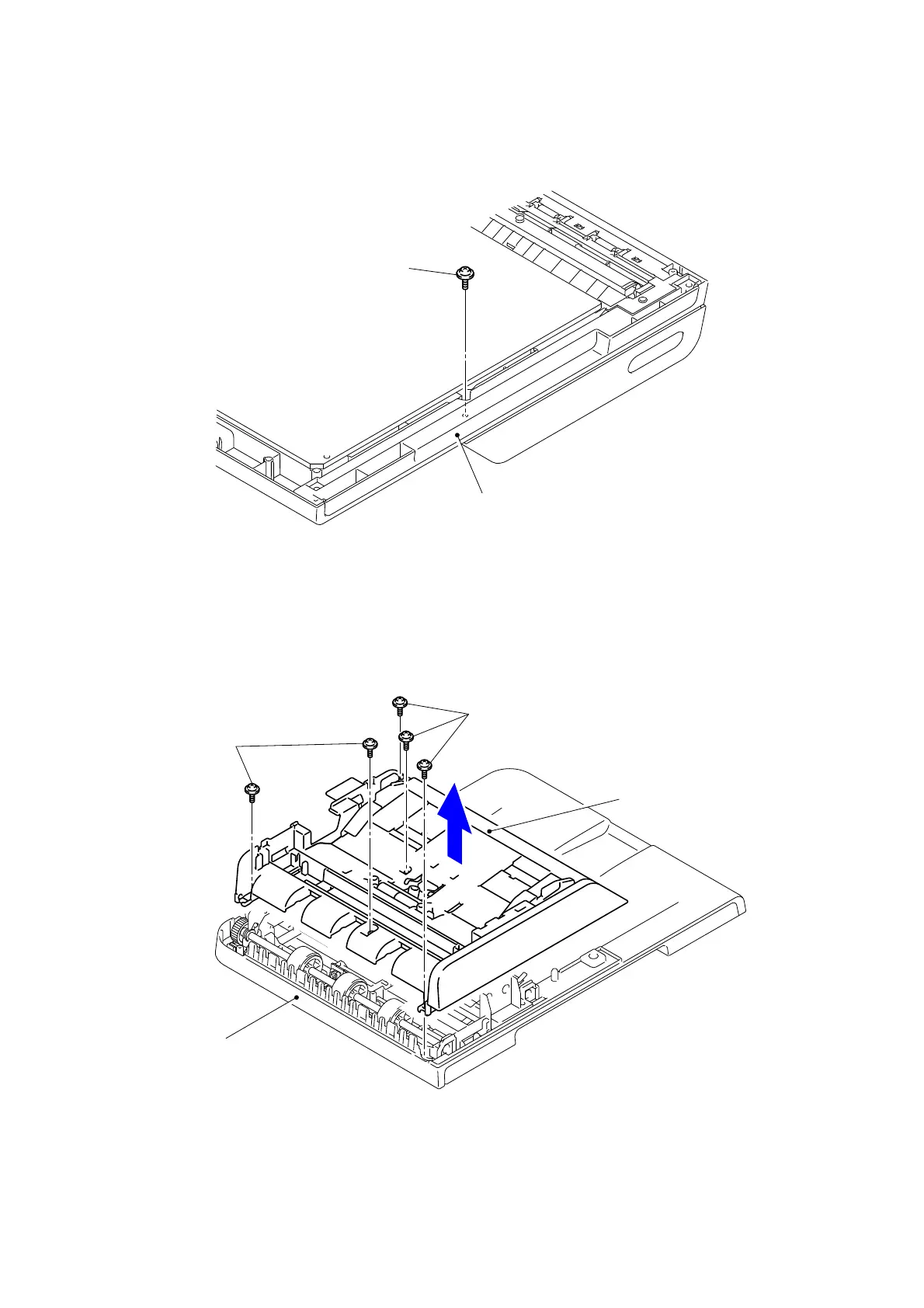

(3) Turn the ADF unit upside down.
(4) Remove the Taptite cup B M3x10 screw from the ADF unit.
Fig. 3-113
(5) Turn the ADF unit right side up.
(6) Remove the five Taptite cup B M3x10 screws from the Upper ADF chute.
(7) Remove the Upper ADF chute from the ADF unit.
Fig. 3-114
Taptite cup B M3x10
ADF unit
ADF unit
Upper ADF chute
Taptite cup B M3x10
Taptite cup B M3x10
