3-97
Confidential

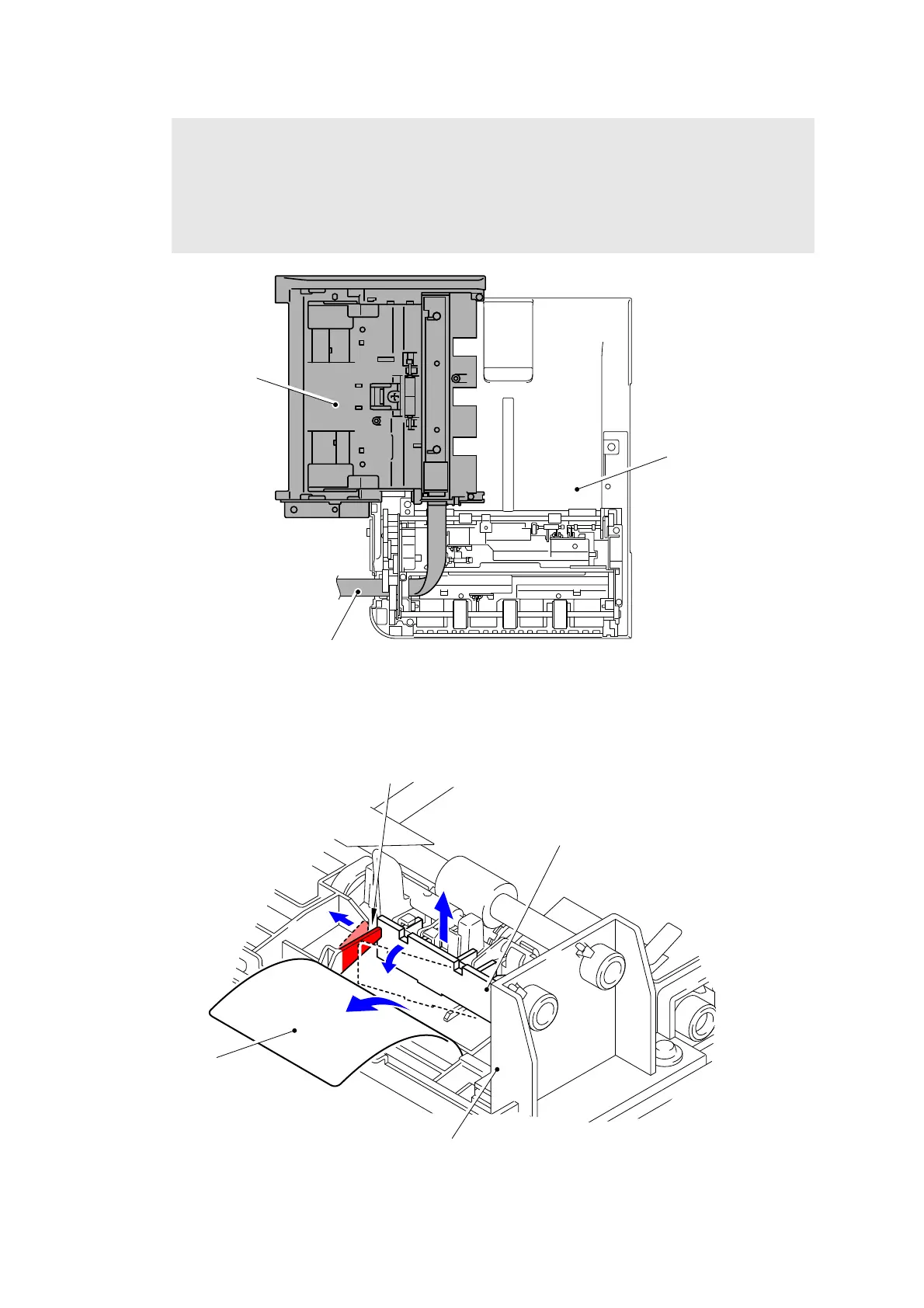

Fig. 3-115
(8) Lift the film. (Only when the Film is inserted)
(9) Push and open the Rib and remove the ADF cover/document detection sensor PCB
ASSY from the Lower ADF chute.
Fig. 3-116
Assembling Note:
When you replace this part without disassembling the Second side CIS unit, follow the
instructions given below:
- Shift the Upper ADF chute to the position shown in the figure so that it will not interfere
with the work.
- Be careful not to damage the Flat cable.
ADF unit
Flat cable
Upper ADF chute
Rib
8
9b
9a
9c
ADF cover/document detection
Lower ADF chute
Film
sensor PCB ASSY
