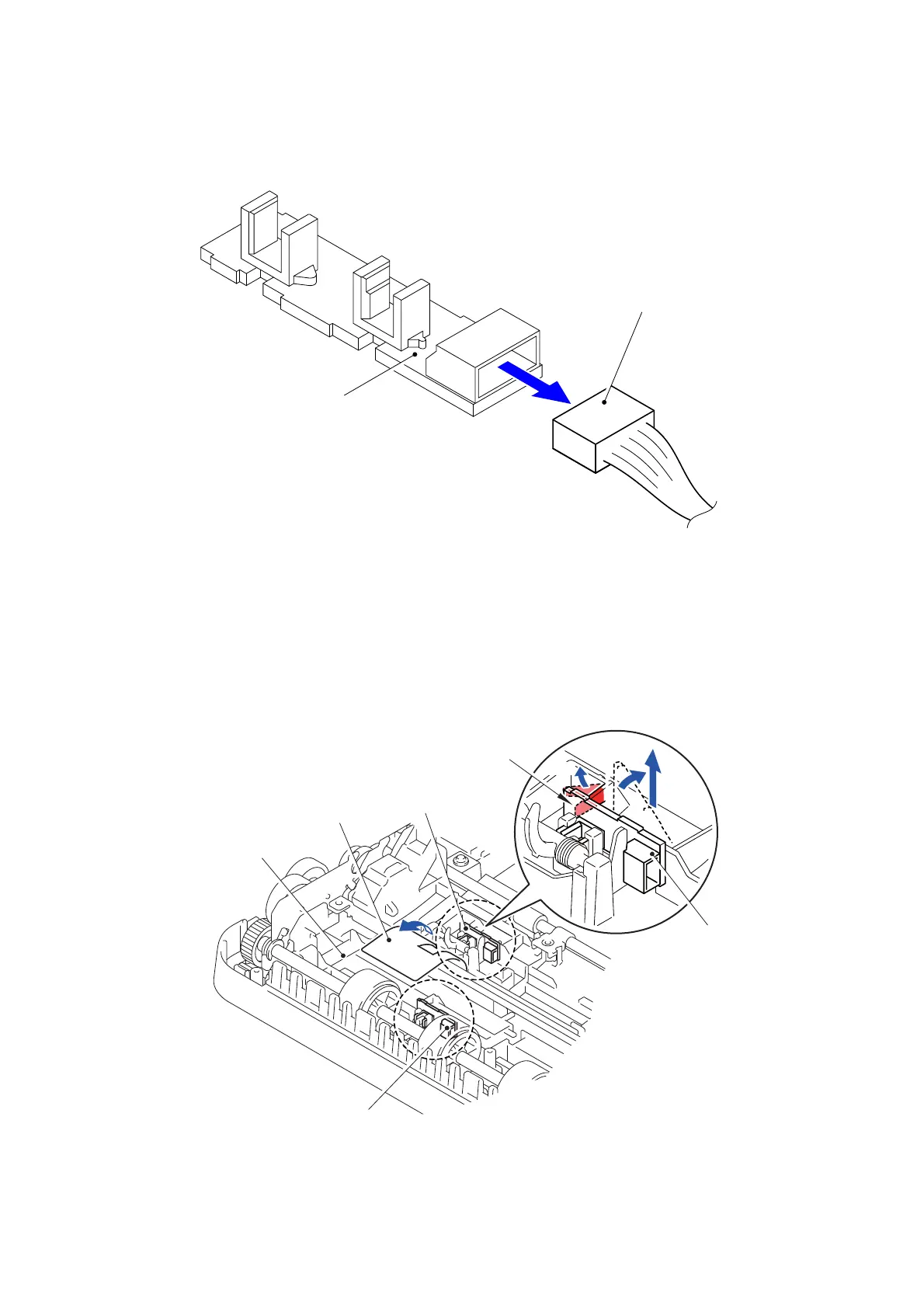

(10) Disconnect the Connector from the ADF cover/document detection sensor PCB ASSY.
Fig. 3-117
(11) Lift the film. (Only when the Film is inserted)
(12) Push and open the Rib and remove the Second side document scanning position sensor
PCB ASSY from the Lower ADF chute.
Fig. 3-118
Connector
ADF cover/document detection
sensor PCB ASSY
Lower ADF chute
Film
Rib
11
12a
12b
12c
Second side document
scanning position sensor
PCB ASSY
Second side document
scanning position sensor
PCB ASSY
First side document scanning
position sensor PCB ASSY
