Brother MFC-L8850CDW Service Manual

3-147
Confidential

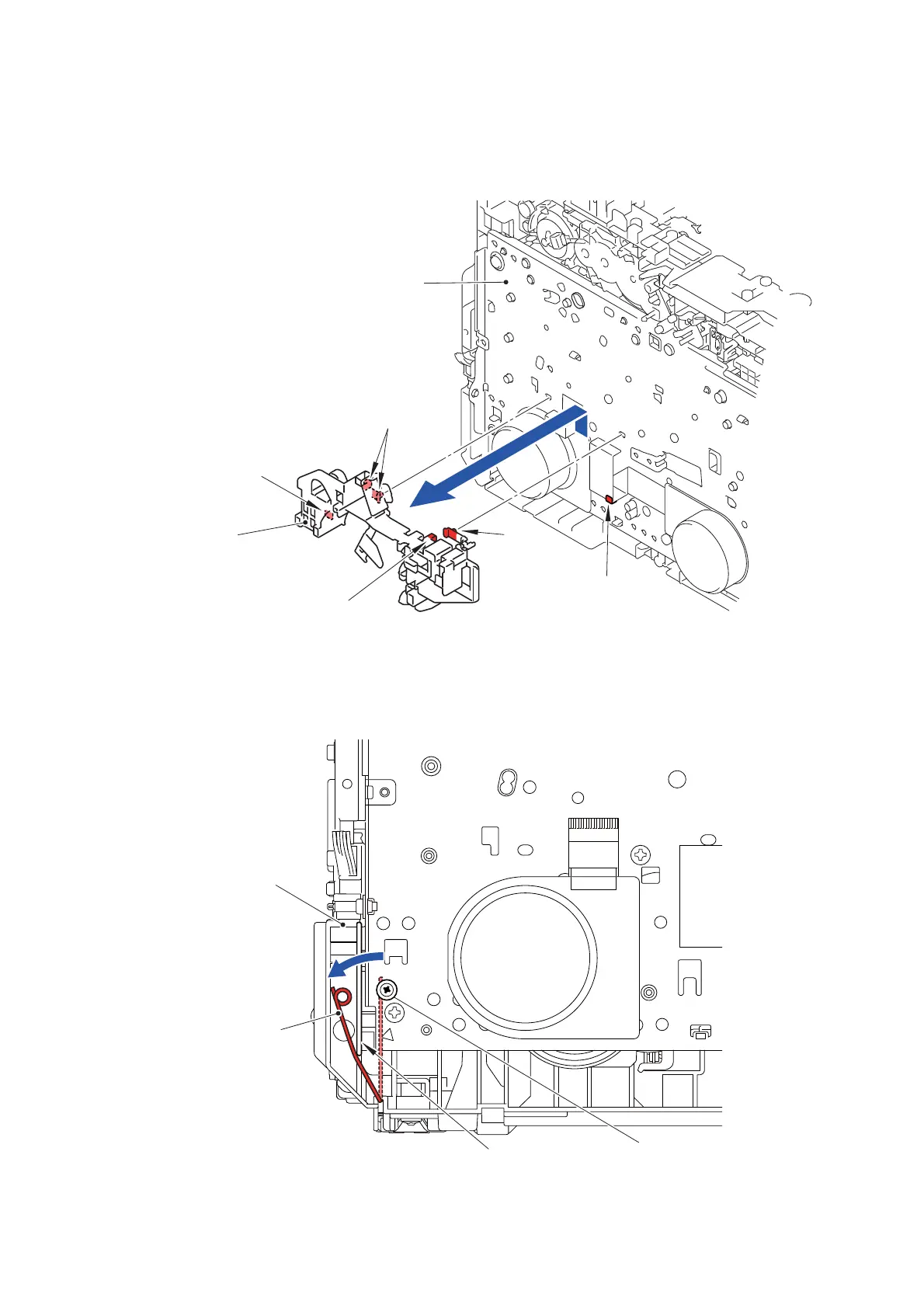

(9) Release all the wiring from the Cable rack.
(10) Release the six Hooks and slide the Cable rack in the direction of the arrow and remove it
from the Main body.
Fig. 3-204
(11) Remove the Taptite cup S M3x8 SR screw and fasten the Under bar ground spring to the
Rib of the Main body.
Fig. 3-205
Hook
Cable rack
Hook
Hook
Hook
Process drive unit
Hook
<Left side>
Taptite cup S M3x8 SR
Under bar ground spring
Main body
Rib
<Back side>

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
