Brother MFC-L8850CDW Service Manual

3-148
Confidential
(12) Remove the five Taptite bind B M4x12 screws, one Taptite pan (washer) B M4x12 DA
screw, and the one Screw pan (S/P washer) M3.5x6 screw from the Process drive unit.
Release the two Hooks and remove the Process drive unit from the Main body.

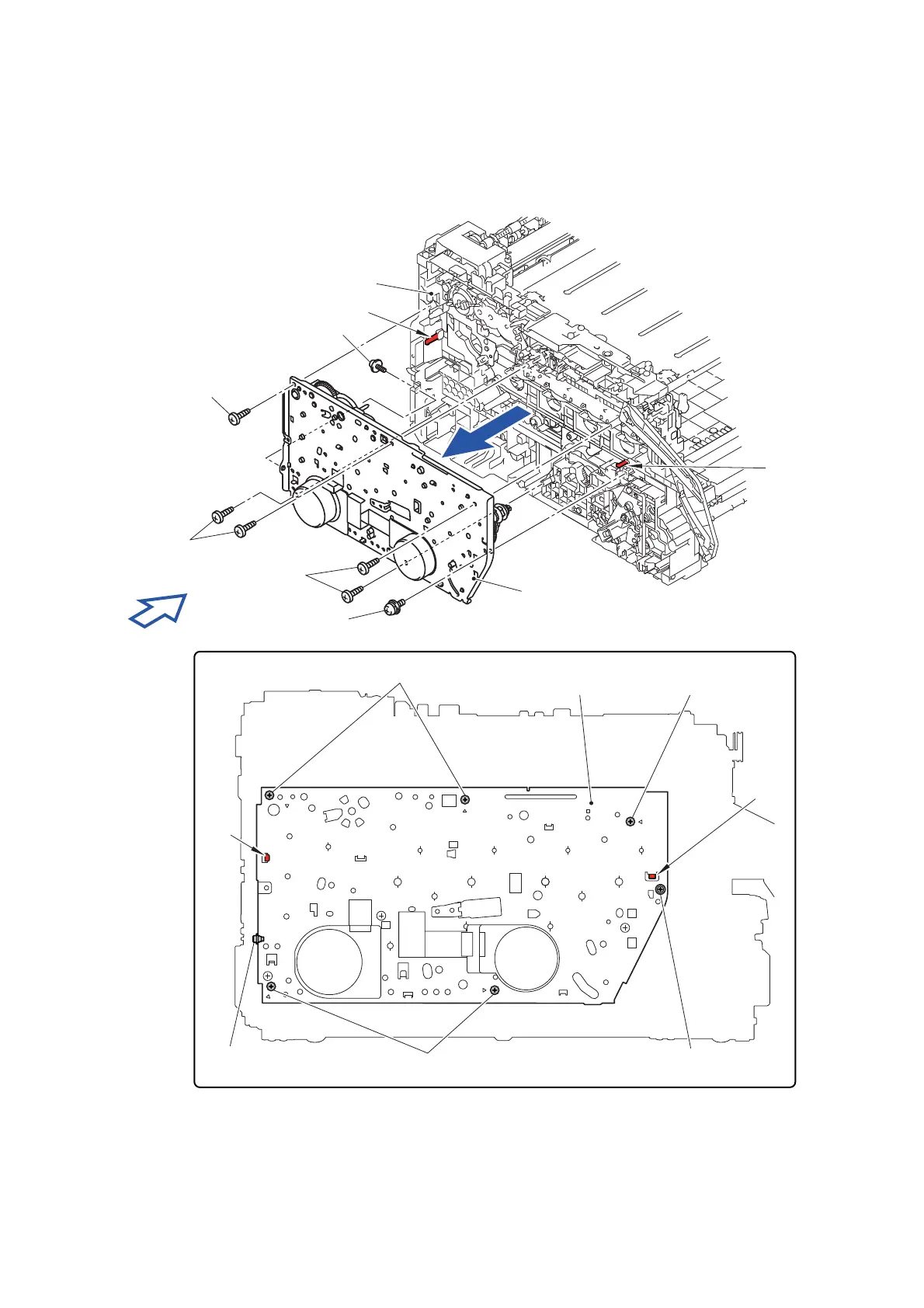

Fig. 3-206
Taptite bind
Hook
Main body
B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Hook
Hook
Taptite pan (washer)
Screw pan (S/P washer) M3.5x6
Hook
B M4x12 DA
A view
<A view>
Taptite pan (washer)
B M4x12 DA
Screw pan (S/P washer)
M3.5x6
<Left side>
Process drive unit
Process drive unit

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
