Brother MFC-L8850CDW Service Manual

3-165
Confidential

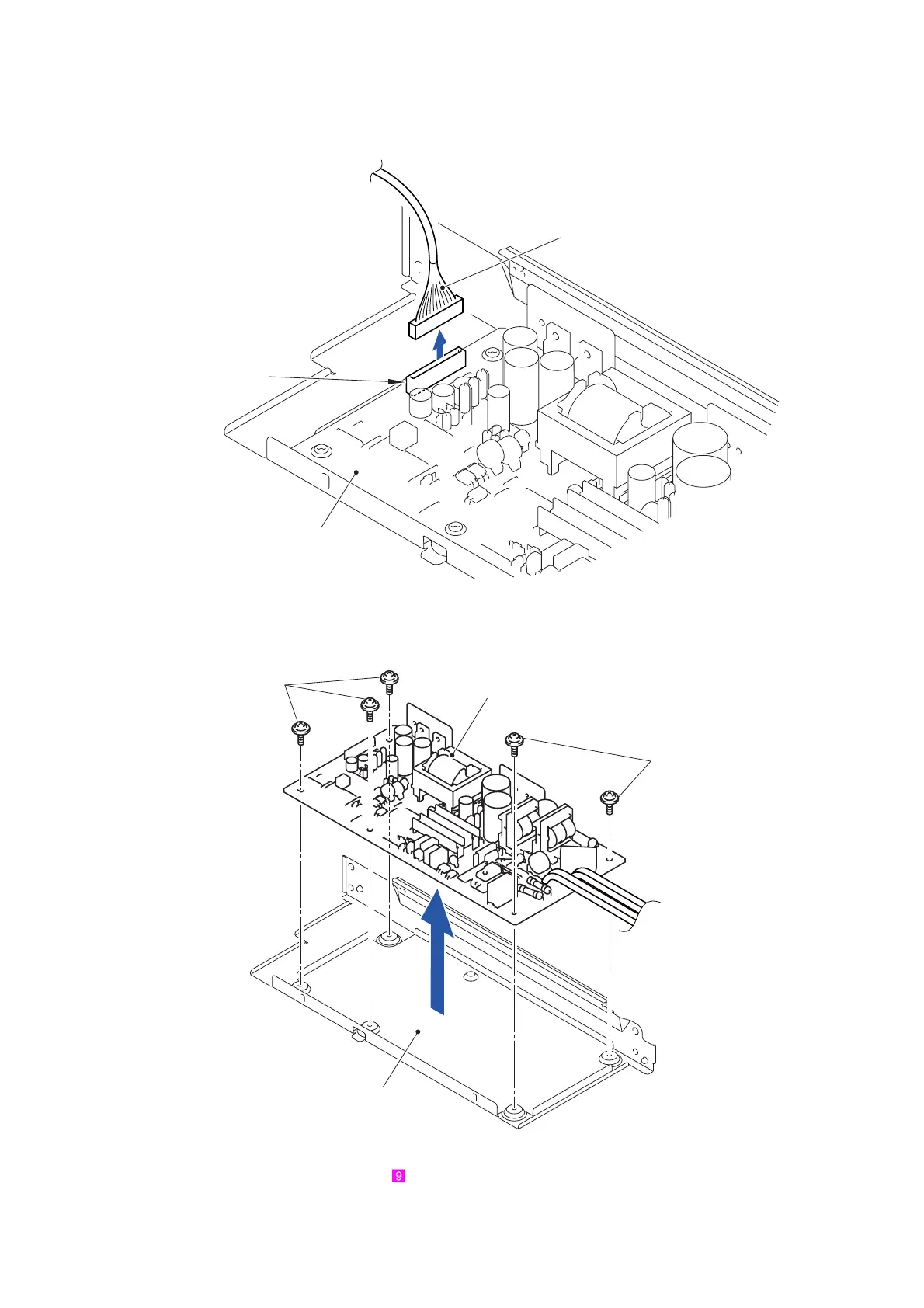

(9) Disconnect the Connector (CN101) of the LVPS-main harness ASSY from the
Low-voltage power supply PCB unit.
Fig. 3-232
(10) Remove the five Taptite cup S M3x6 SR screws and remove the Low-voltage power
supply PCB unit from the LVPS plate.
Fig. 3-233
Harness routing: Refer to “ Low-voltage Power Supply PCB Unit”
LVPS-main harness ASSY
CN101
Low-voltage power supply PCB unit
Connector of the
Taptite cup S M3x6 SR
Low-voltage power supply PCB unit
LVPS plate
Taptite cup S M3x6 SR
