Brother MFC-L8850CDW Service Manual

3-175
Confidential

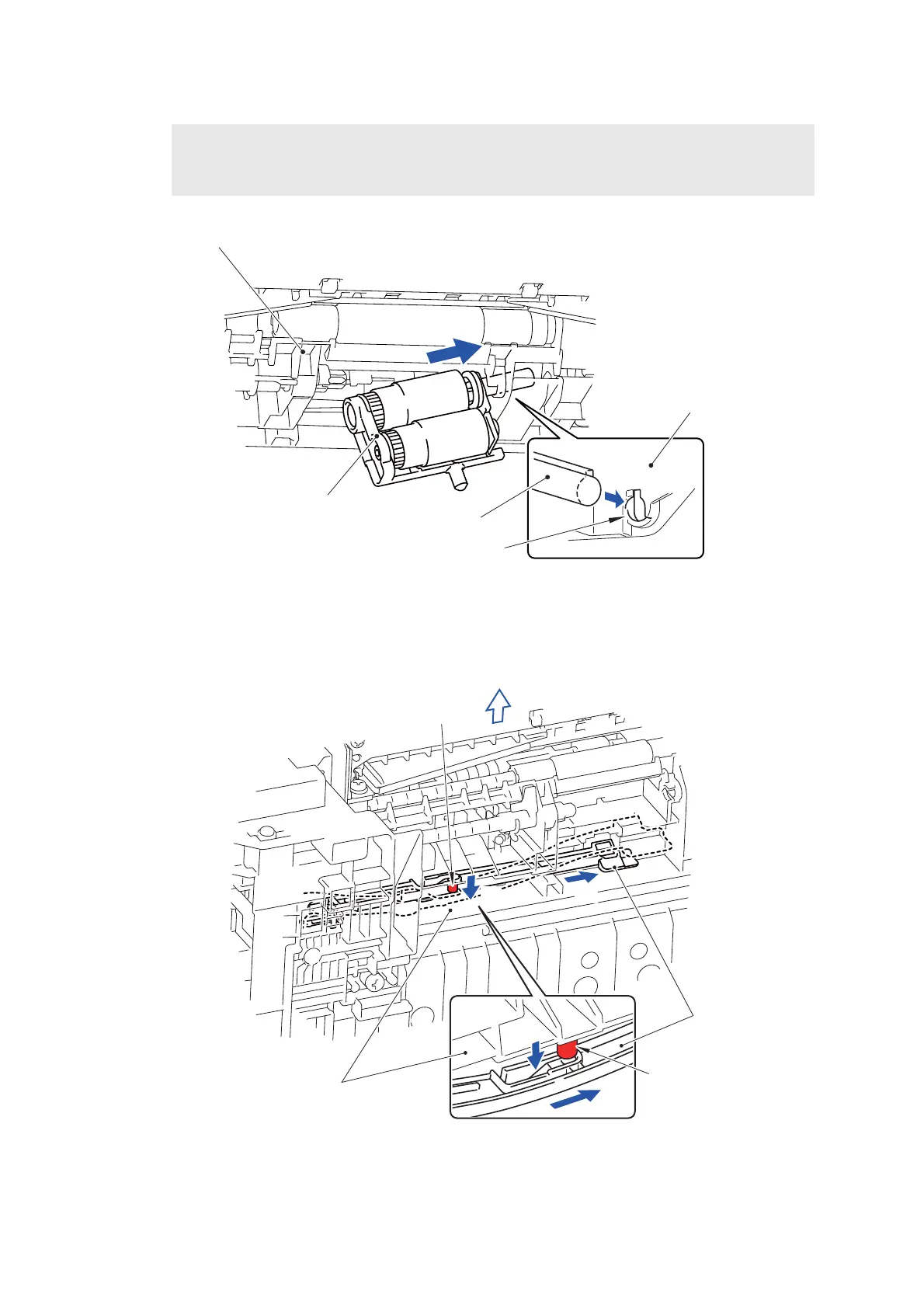

Fig. 3-252
(4) Move the T1 lift arm in the direction of the arrow 4b as bending it in the direction of the
arrow 4a and remove it from the Boss of the Paper feed unit.
Fig. 3-253
Assembling Note:
Align the Hole of the Paper feed unit to the Shaft of the Roller holder ASSY and insert it into
the Hole.
Paper feed unit
Paper feed unit
Roller holder ASSY
Hole
Shaft
T1 lift arm
Paper feed unit
Boss
4a
4b
4b4a
Boss
<Front>
