(5) Remove the PF drive gear 21 and PF drive joint from the Main body.

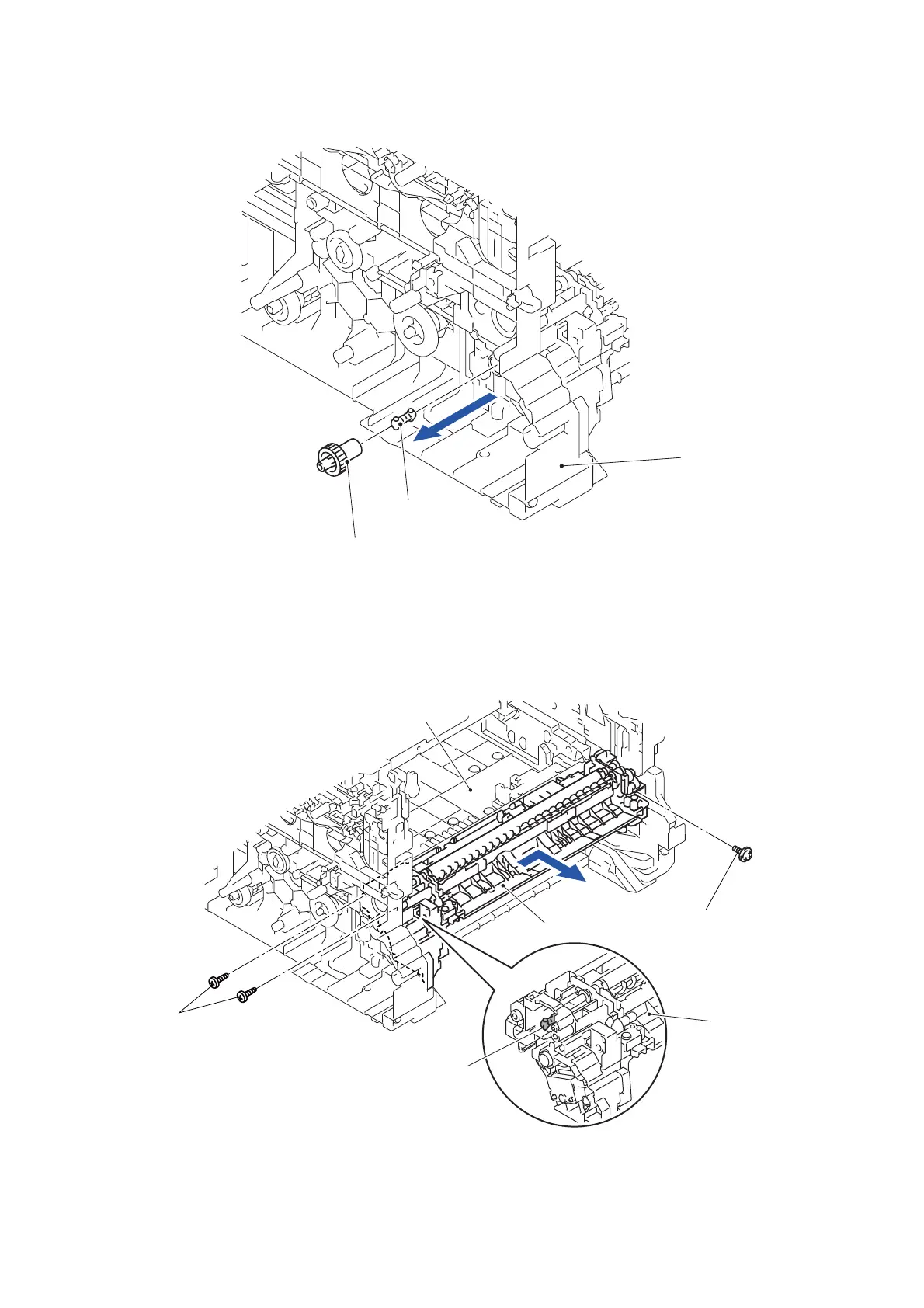

Fig. 3-254
(6) Remove the Taptite cup B M3x12 screw from the Paper feed unit.
(7) Remove the two Taptite bind B M4x12 screws, then shift the Paper feed unit to the right,
and remove it from the Main body.
Fig. 3-255
PF drive gear 21
PF drive joint
Main body
<Left side>
Taptite cup B M3x12
Paper feed unit
Taptite
Main body
bind B
M4x12
Paper feed unit
<Front side>
Registration roller drive joint
