7-3

Confidential

2.1.1 Fuser unit

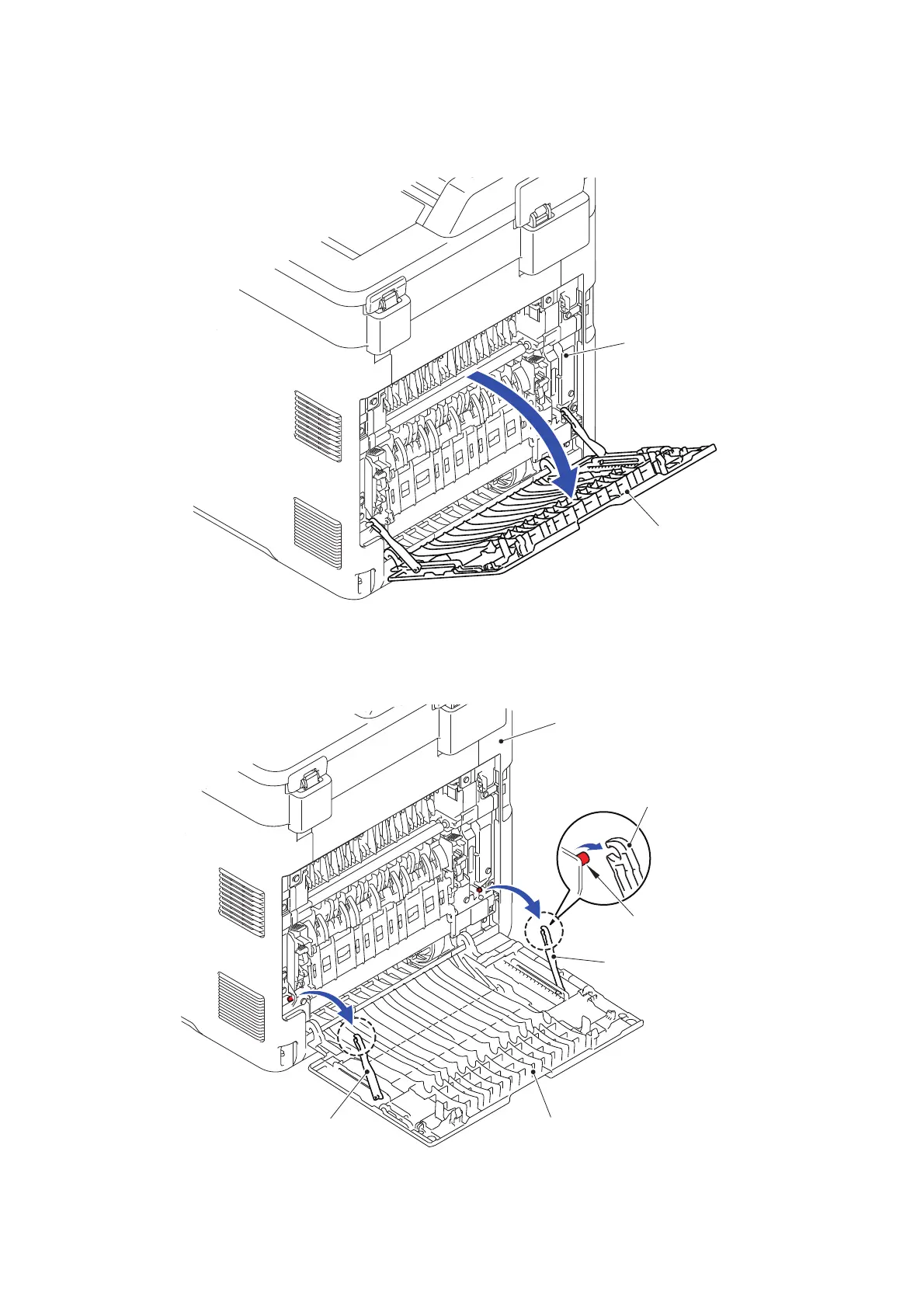

(1) Open the Back cover.

Fig. 7-1

(2) Remove the Back cover stopper arm L/R from the Main body.

Fig. 7-2

Main body

<Back side>

Back cover

Back cover stopper arm L

Main body

Back cover stopper arm R

Back cover stopper arm L

Pin

Back cover

<Back side>
