Brother MFC-L8850CDW Service Manual

7-43
Confidential
(3) Push the T1 lift arm to the back and remove “B” of the Roller holder ASSY from “A” of the
T1 lift arm.

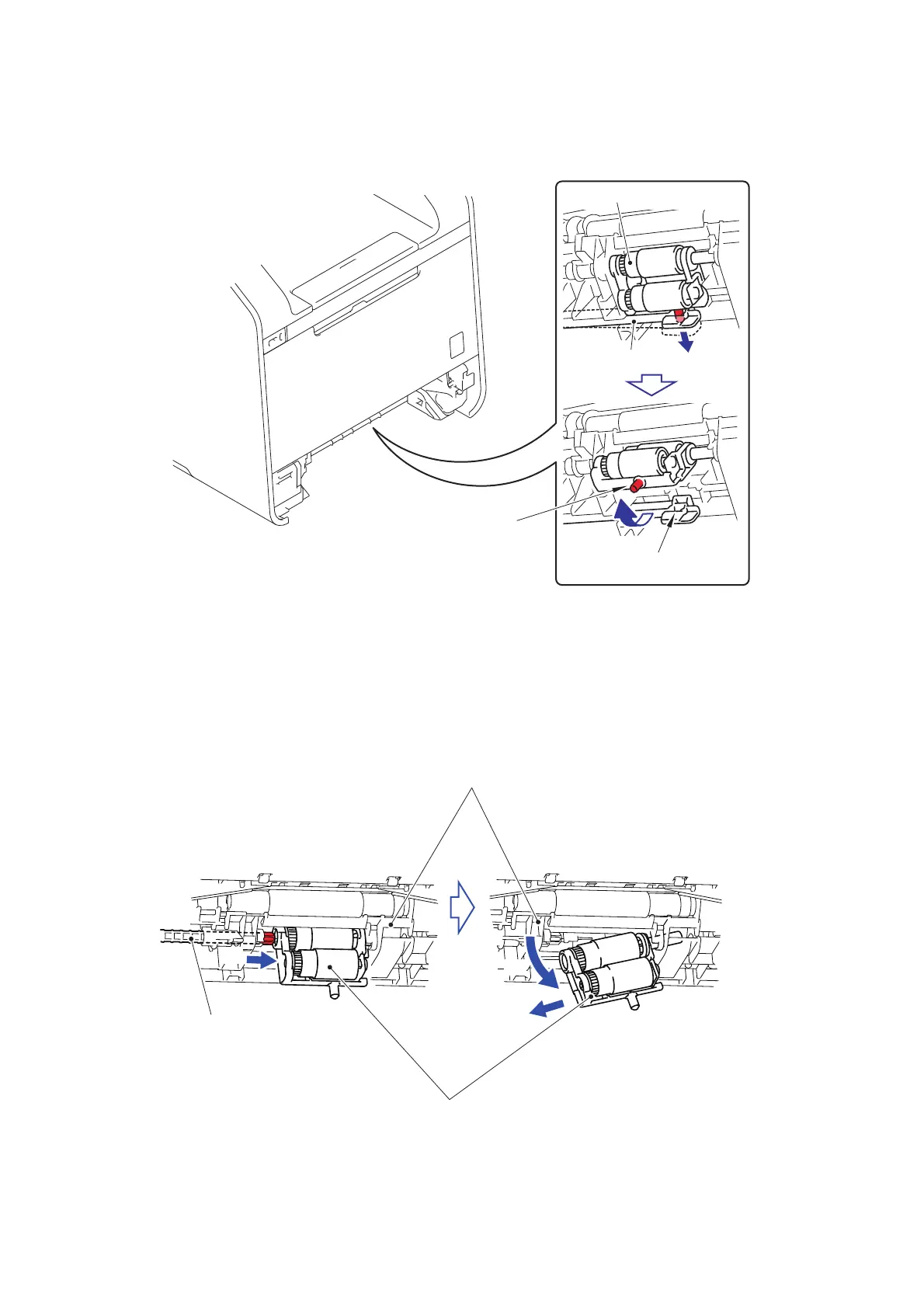

Fig. 7-79
(4) Slide the Roller holder ASSY in the direction of the arrow and remove it from the T1 drive
shaft gear Z17M07.
(5) Slide the Roller holder ASSY in the direction of the arrow 5a and 5b in this order and
remove it from the Paper feed unit.
Fig. 7-80
T1 lift arm
Roller holder ASSY
“B”
“A”
5b
5a
4
Roller holder ASSY
Paper feed unit
T1 drive shaft gear Z17M07
