Fig. 7-81

(6) After replacing the PF kit 1, reset the counter. (Refer to “1.3.37 Reset counters for parts

(Function code 88)” in Chapter 5.)

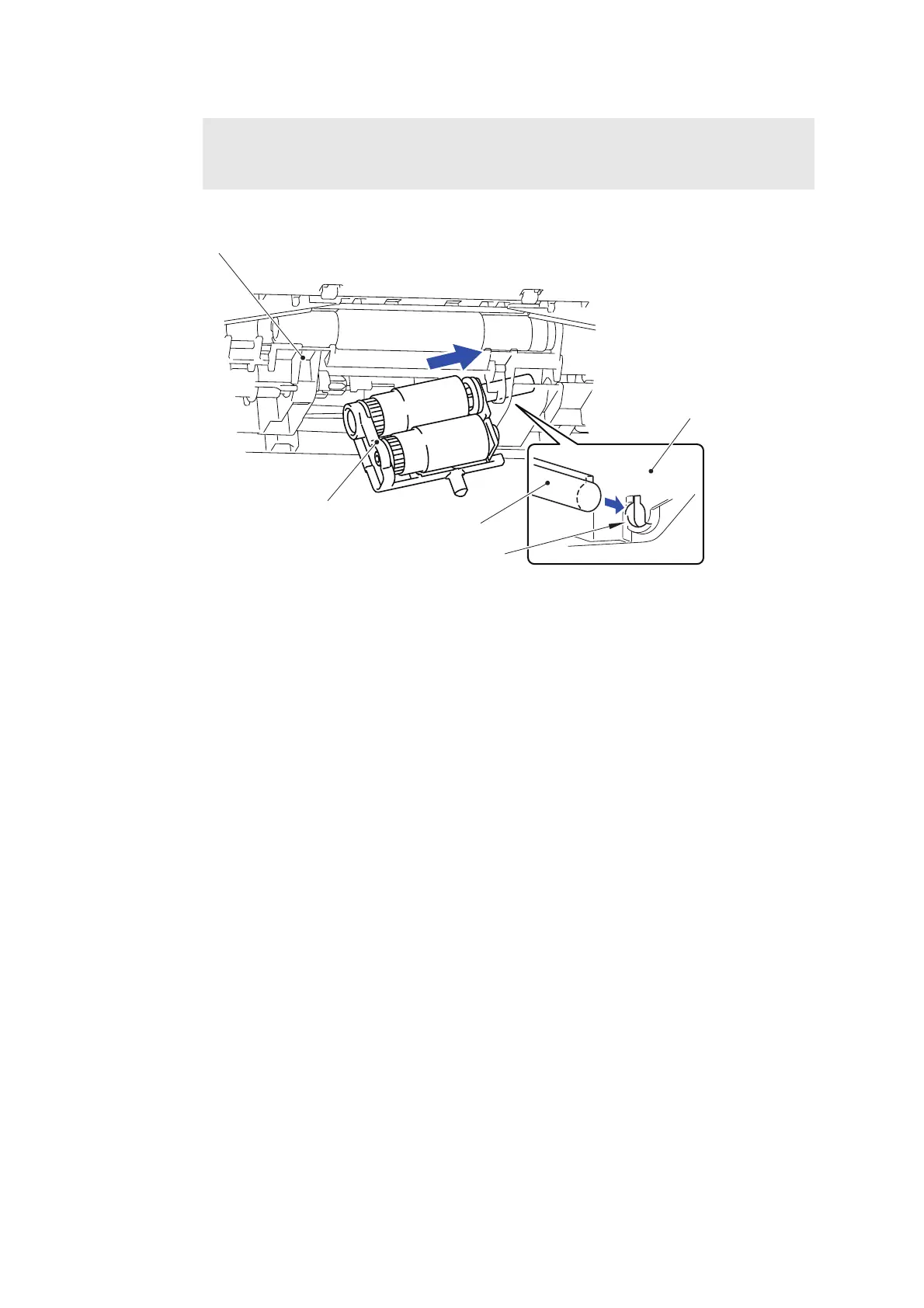

Assembling Note:

Align the Hole of the Paper feed unit to the Shaft of the Roller holder ASSY and insert it

into the hole.

Paper feed unit

Paper feed unit

Roller holder ASSY

Hole

Shaft
