2.1.4 PF kit 2

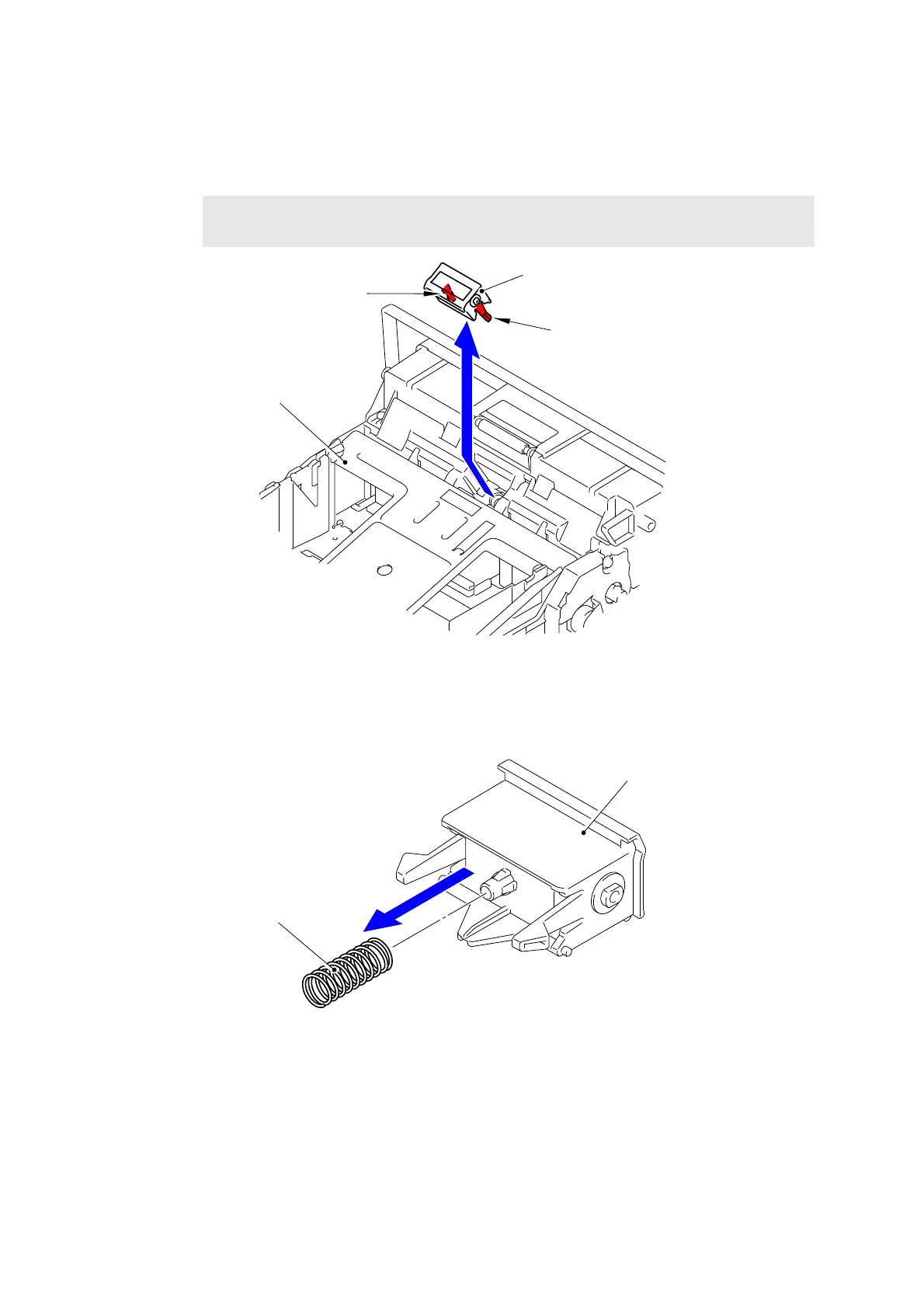

(1) Release the two Hooks of the T2 separation pad ASSY to remove them in the upward
direction.
Fig. 7-82
(2) Remove the T2 separation pad spring from the T2 separation pad ASSY.
Fig. 7-83
Note:
Be careful not to lose the T2 separation pad spring.
Hook
Hook
T2 separation pad ASSY
T2 paper tray unit
T2 separation pad ASSY
T2 separation pad spring
