Safety Barrier Assembly Installation (Optional)
40 H148850_3_003

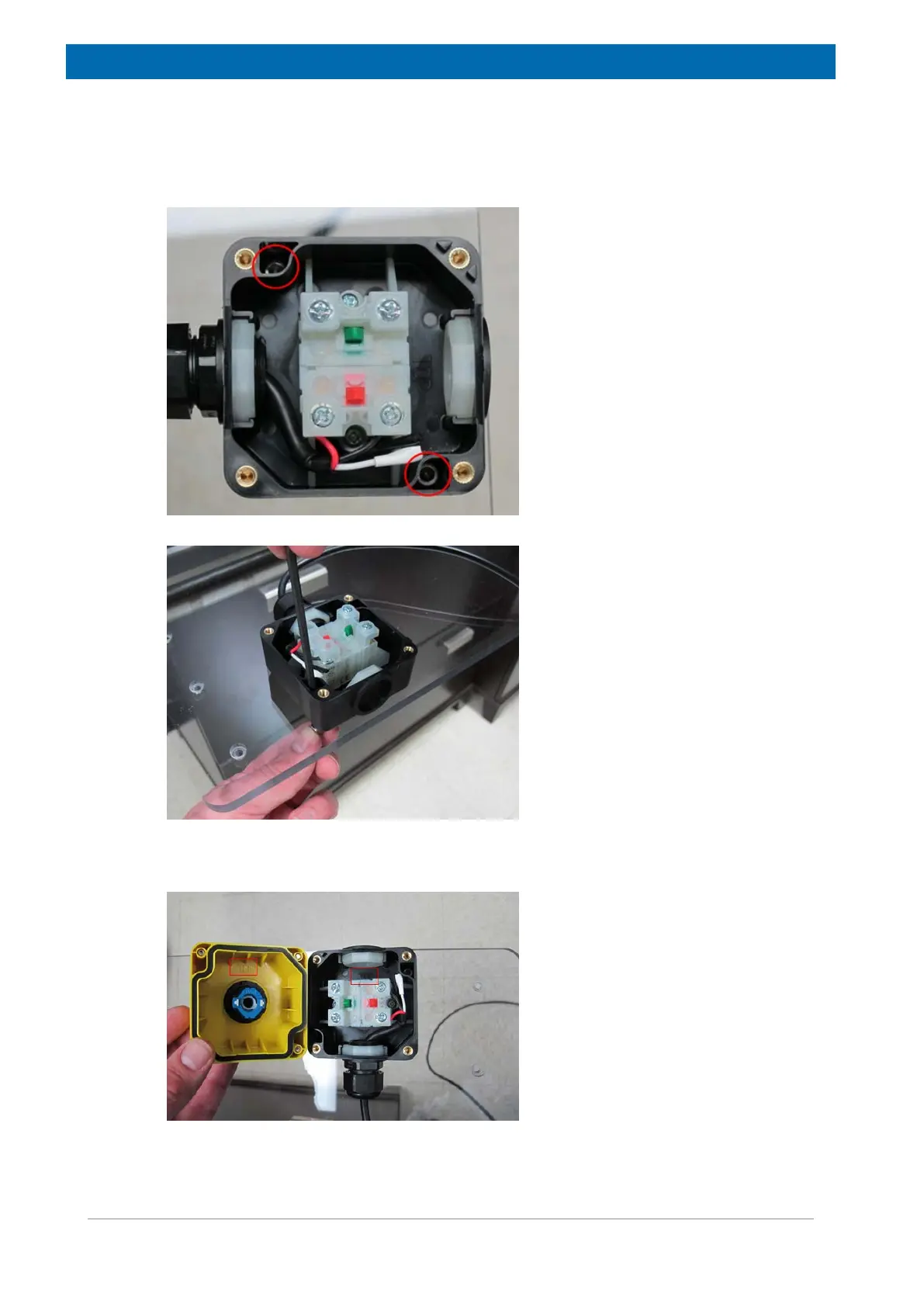

Step 8: Use the two 8-32x.625 SHCS and 8-32 acorn nuts (bag C) to mount the stop to the
wall. The bolts insert into the button’s base and the acorn nuts on the bottom of the wall. Use
a 9/64” Allen wrench for the screws and a 1/4” wrench or nut driver to hold the acorn nut.
Step 9: Once the base is secure, match the TOP’s on the base and the cap of the button
assembly.
