Safety Barrier Assembly Installation (Optional)
42 H148850_3_003

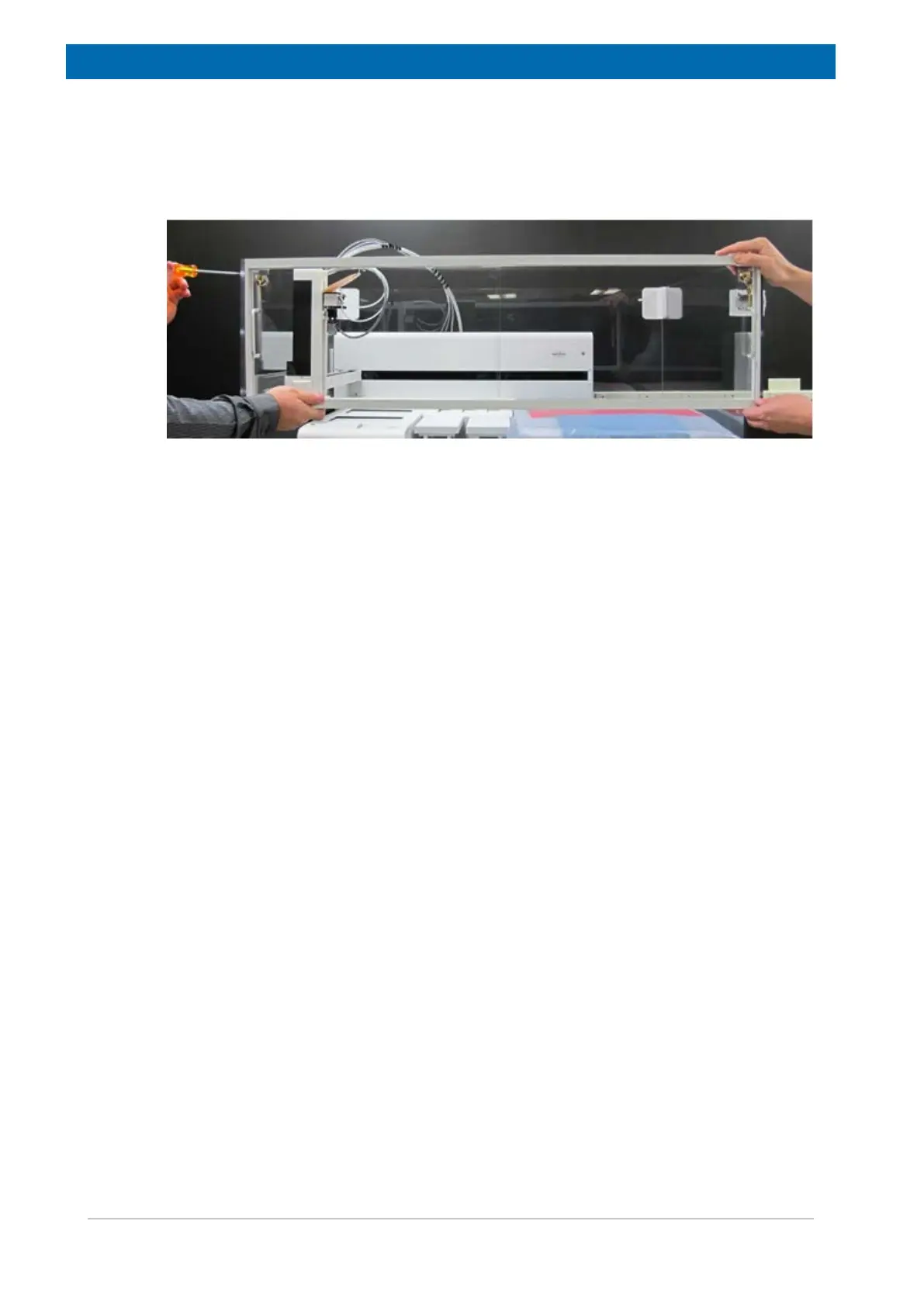

Step 15: The front door panel is next. This step needs two people. One to steady the panel,
while the second secures one side with three 10 32x0.375 (Bag F) screws. Ensure that the
key lock is on the top. When finished with one side move to the next while person two is still
holding the panel steady. Use the other three 10 32x0.375, Bag F, screws on the second
side.
The safety barrier is now installed. The NMR system is ready for full operation.
