VÅNTEC-1 Detector User Manual Basic Operation
M88-E01072 9 - 9

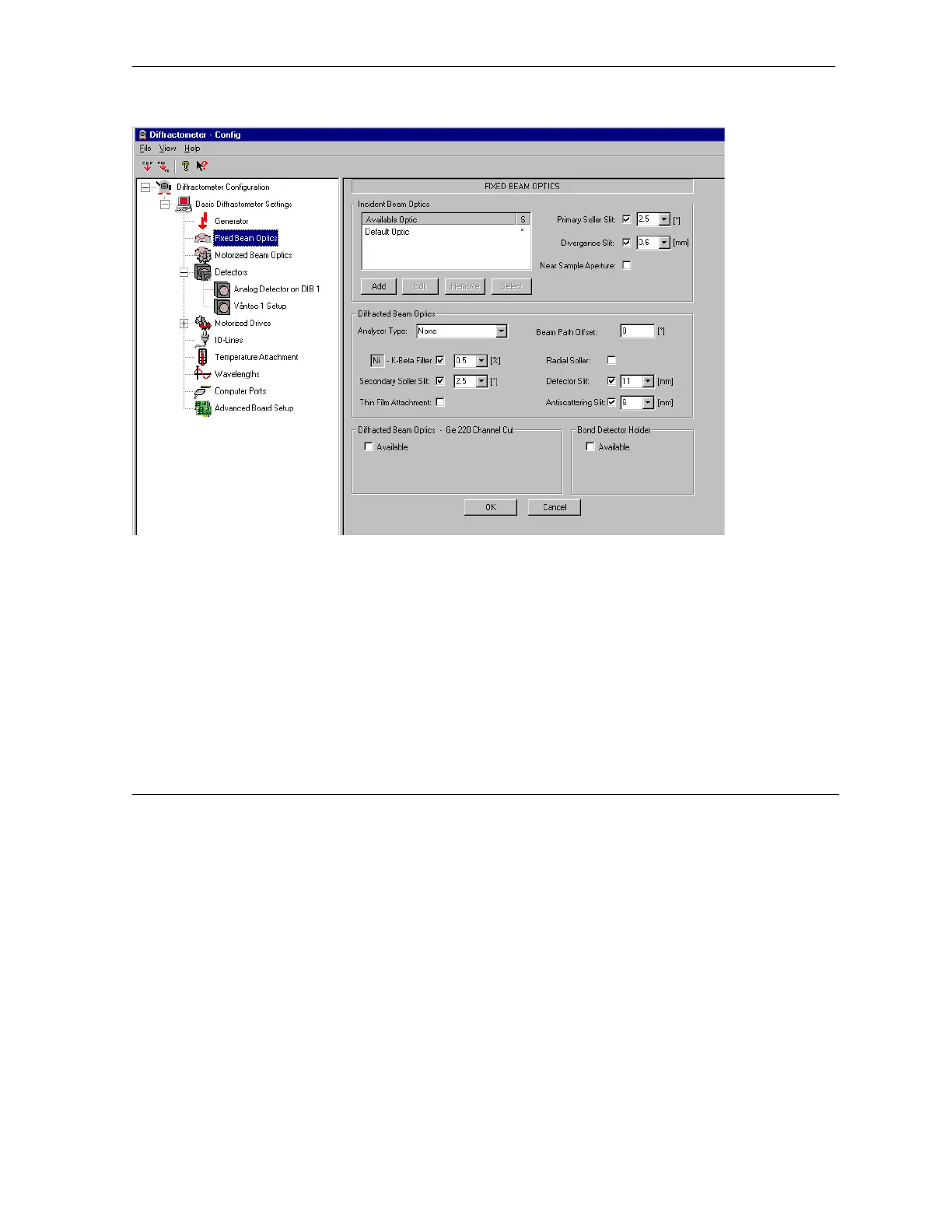

Figure 9.3 - Fixed beam optics
The distance of the anti-scatter slit is measured
from the center of the goniometer to the edge of
the slits.
The distance for the detector slit is measured
from the reference mark on the detector to the
edge of the detector slits (see Figure 4.23).
The PSD resolution and offset were determined
during the calibration of the detector.
