VÅNTEC-1 Detector User Manual Hardware Installation for the D4 ENDEAVOR
M88-E01072 5 - 5

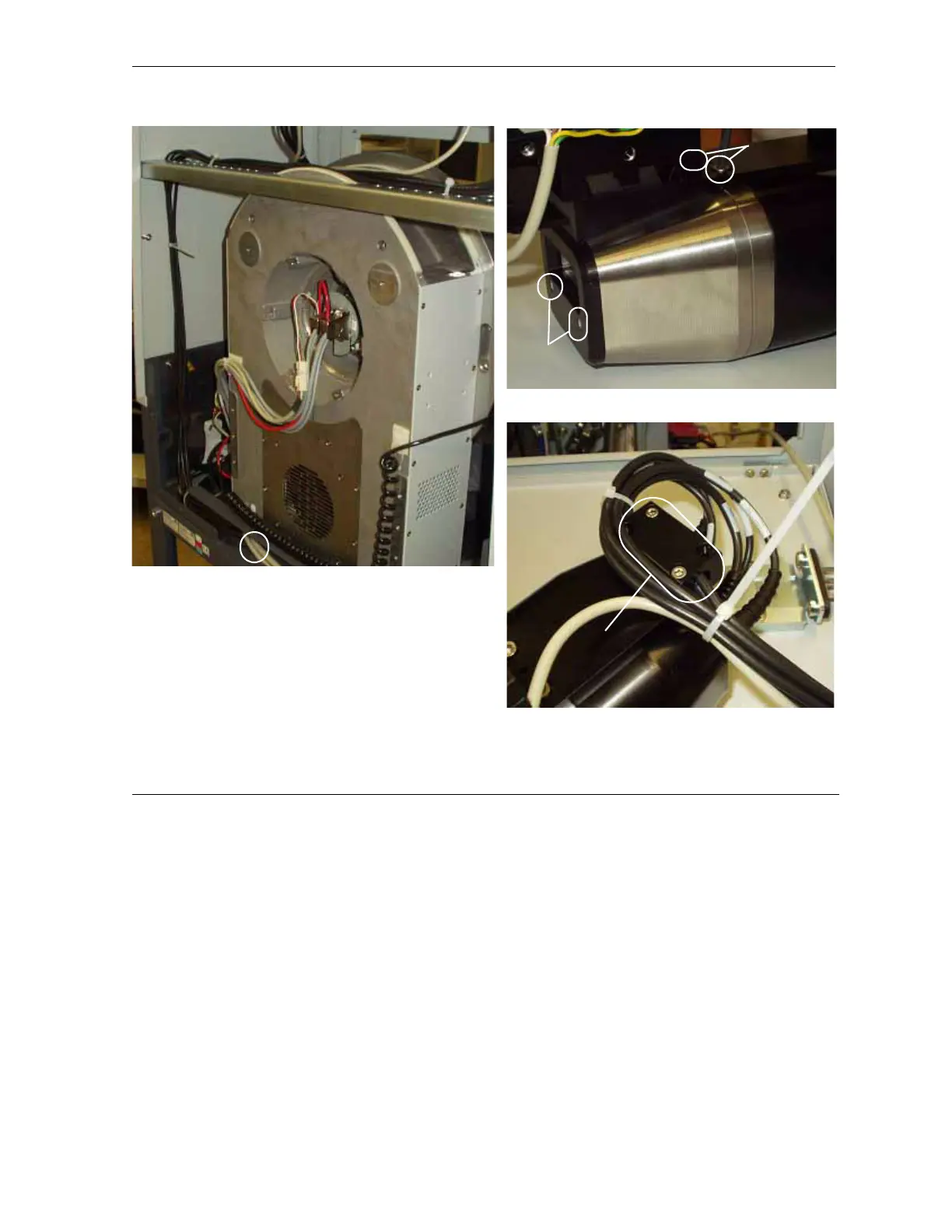

Figure 5.4 - Fix the cables as shown
7. Fix the detector to the detector mount with
two M3 countersunk screws and two M5
Allen screws (see Figure 5.5).
8. Mount the high voltage cables to the strain
relief (see Figure 5.6). Attach the other
cables to the strain relief with cable ties.
Figure 5.5 - Mount the detector to the detector mount
Figure 5.6 - Strain relief
M3
M5
Strain
relief
