INSTALLATION

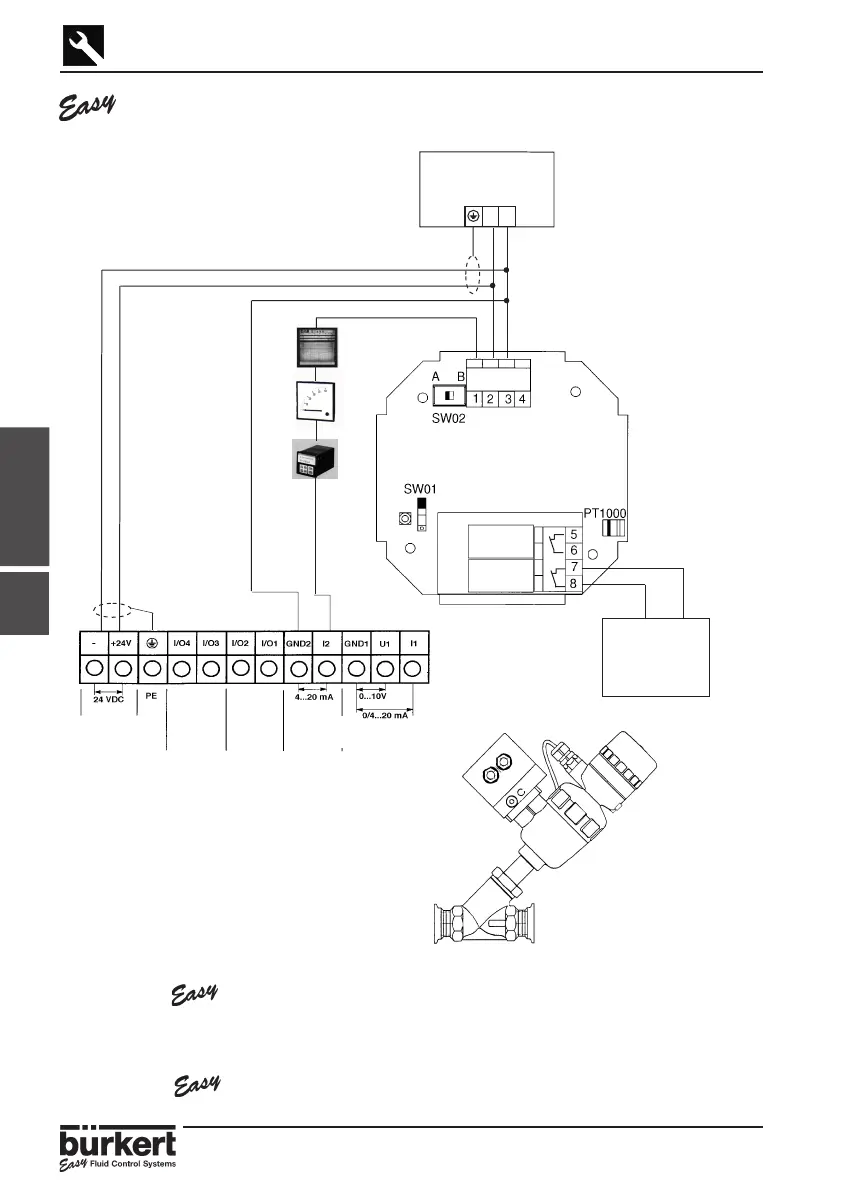

Example of LINK between the 8175 level transmitter 18-32VDC
and the 1067 positioner mounted on an angle seat valve
type 2632.
NETWORKING provided by the relay outputs.
3.5
CONTINUOUS PNEUMATIC LEVEL CONTROL
8175
4-20 mA
24 V=
-
+
PLC
POSITIONER TYPE 1067
