Burkert 8175 - Page 21

21
8175
ENGLISH
INSTALLATION
8175
4-20 mA
24 V=
-
+
SW2
AB
SW1
5
6
7
8
PT1000
3.5

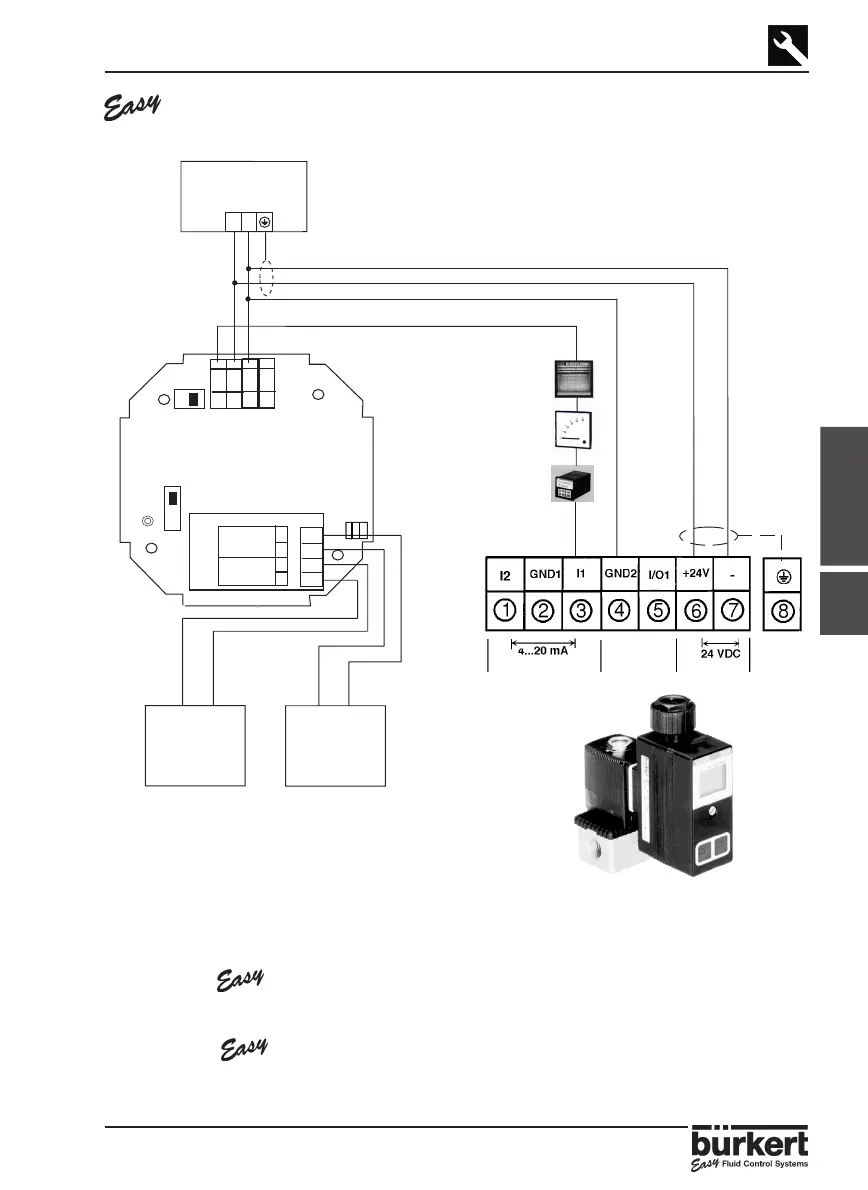

Example of LINK between the 8175 level transmitter 18-32VDC
and the 8624 solenoid valve with PI controller.
NETWORKING provided by the relay outputs.
CONTINUOUS SOLENOID LEVEL CONTROL
PLC Alarm
