CHAPTER 7 PICK-UP/FEEDING SYSTEM
7-34
Construction of the registration roller assembly

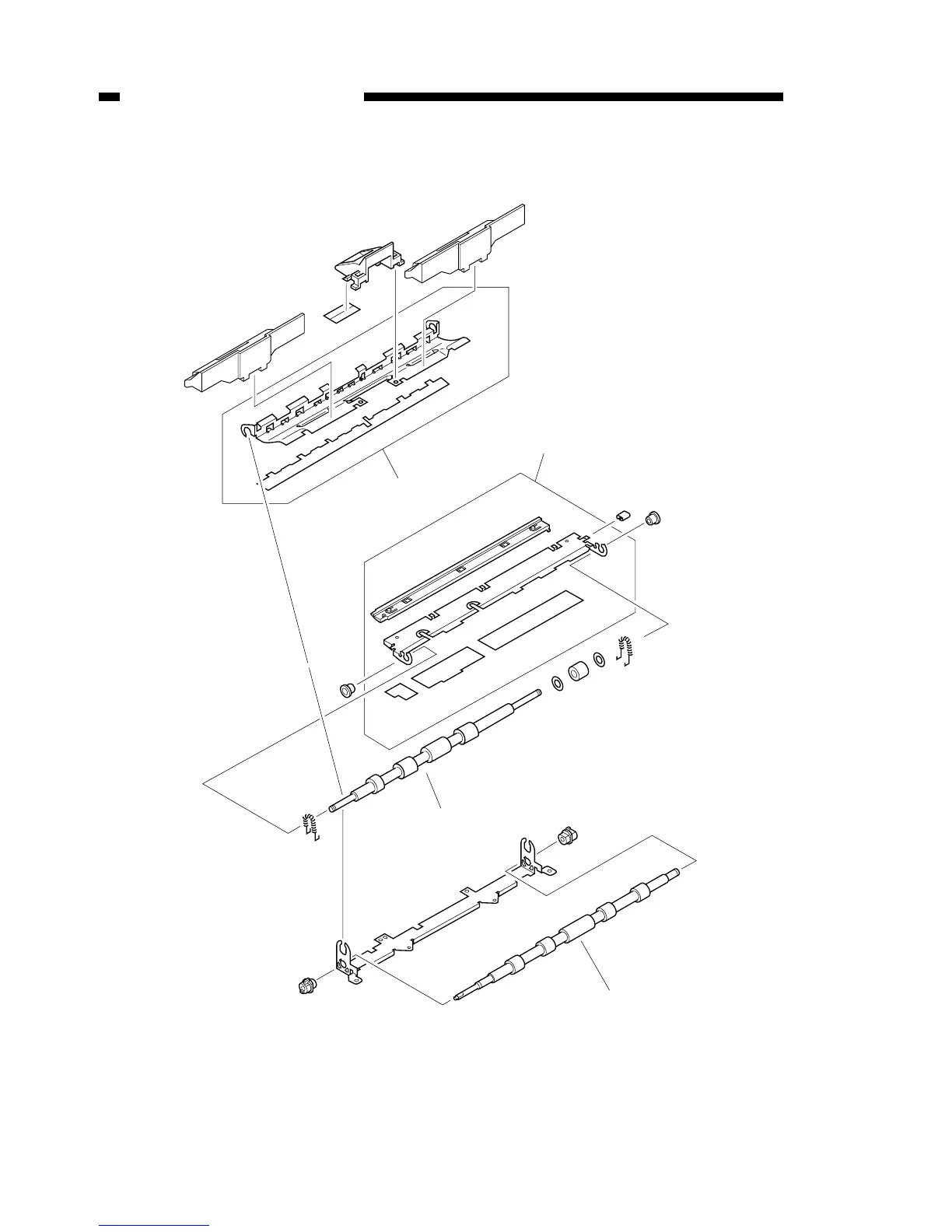

Figure 7-723
Upper registration
guide plate
Lower registration guide plate
Registration pressure roller
Registration roller
