CHAPTER 7 PICK-UP/FEEDING SYSTEM
7-35
D. Feeder assembly
1. To remove the feeder assembly
1) Remove the printer unit from the
main unit (refer to 9-19)
2) Remove the DC controller PCB (refer
to 9-25)
3) Follow steps 3) to 5) of ‘To remove
the main motor’ and remove the main
drive assembly.
4) Remove the transfer charging roller.
5) Remove the fixing assembly (refer to
8-7).
6) Remove the 2 installation screws [1]
and then remove the feeder assem-
bly.

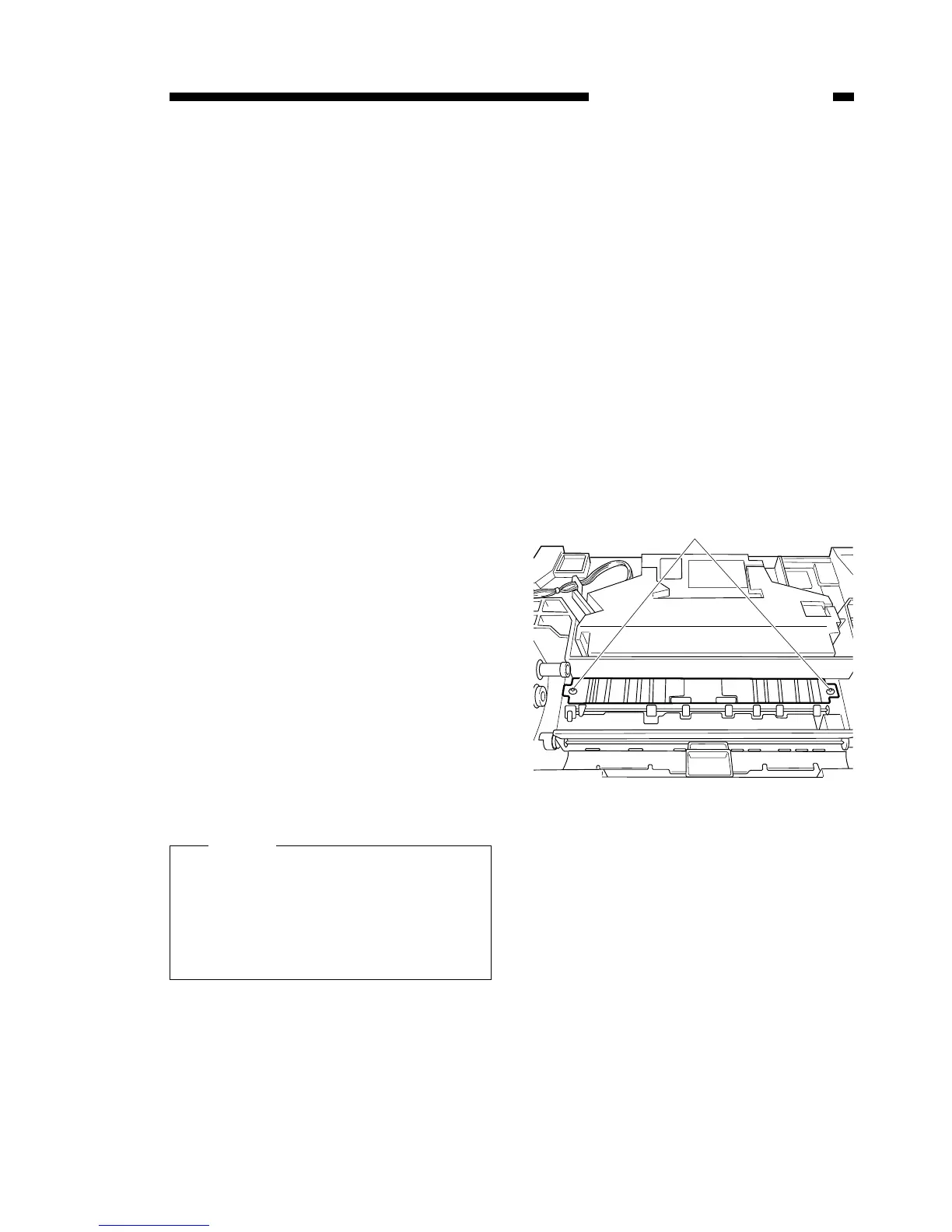

Figure 7-724
Install the feeder unit before installing
the DC controller PCB. If the feeder
unit is installed after the DC controller
PCB, there is the possibility that the
high-voltage contact pins will become
deformed.
