Canon GP160DF - Image Processor PCB

CHAPTER 3 ARRANGEMENT AND FUNCTIONS OF THE ELECTRICAL PARTS
3-13

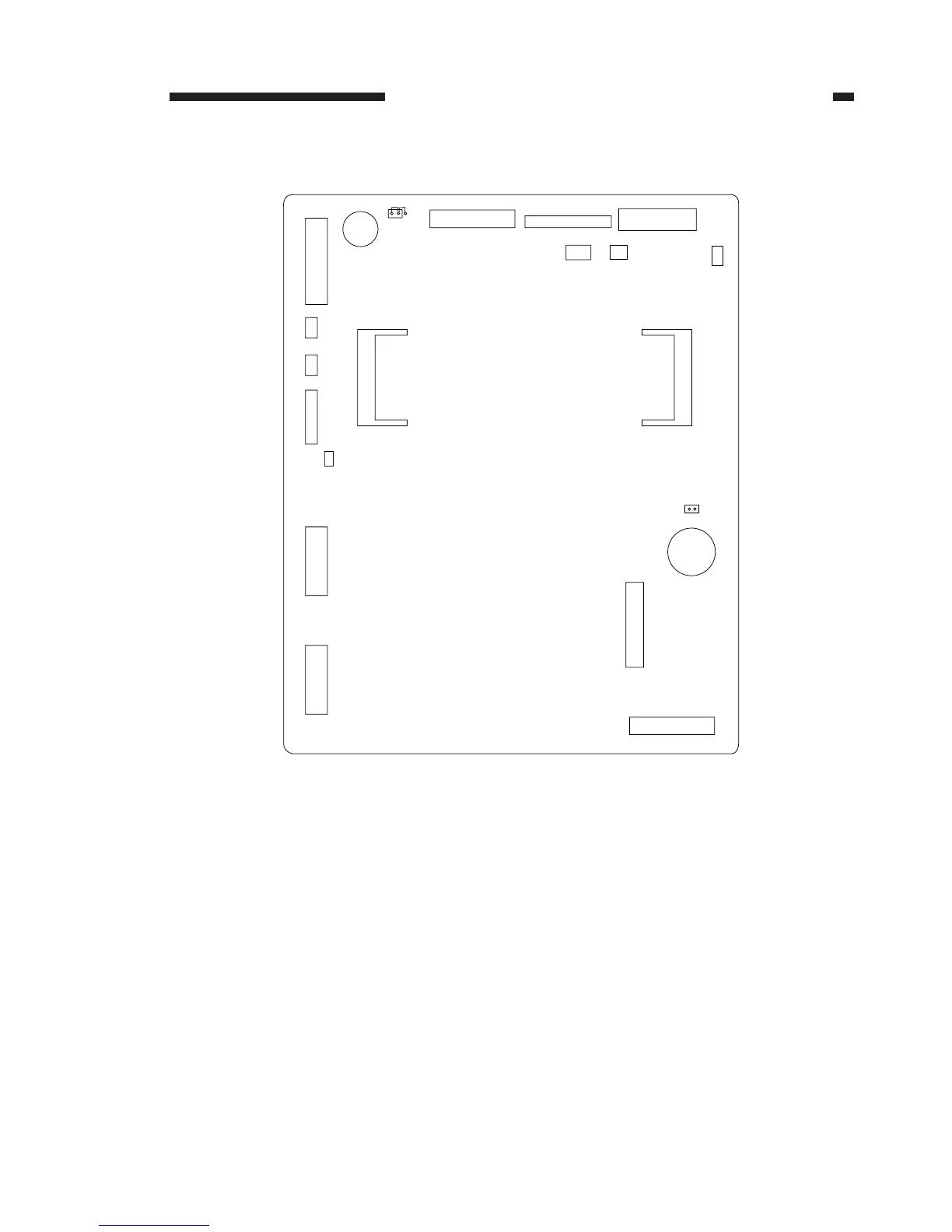

1. Image processor PCB
Figure 3-6
• JP1 : Image memory backup battery (BAT1) electrification jumper plug
• JP3 : Data control (user data, service mode data) memory backup battery (BAT2)
electrification jumper plug
• BAT1 : Fax transmission image memory backup battery
• BAT2 : Control data (service mode data, user mode data) memory backup battery
J205
J216
J211
J214 J209
J201
J210
J204
J217
J208
J203
J207
J202
J215
J213
JP3
BAT2
BAT1
JP1
ON
OFF
J219
J212
