Canon GP160DF - Mirror Positioning Adjustment

CHAPTER 2 STANDARDS AND ADJUSTMENTS
2-3
4. Mirror positioning adjustment
a) Adjusting position of No. 2 mirror mount
If the optical section wire pulley’s hexagonal fixing nut has been loosened, follow the
procedures described below to adjust the position of the No. 2 mirror mount, and then
tighten the hexagonal nut.

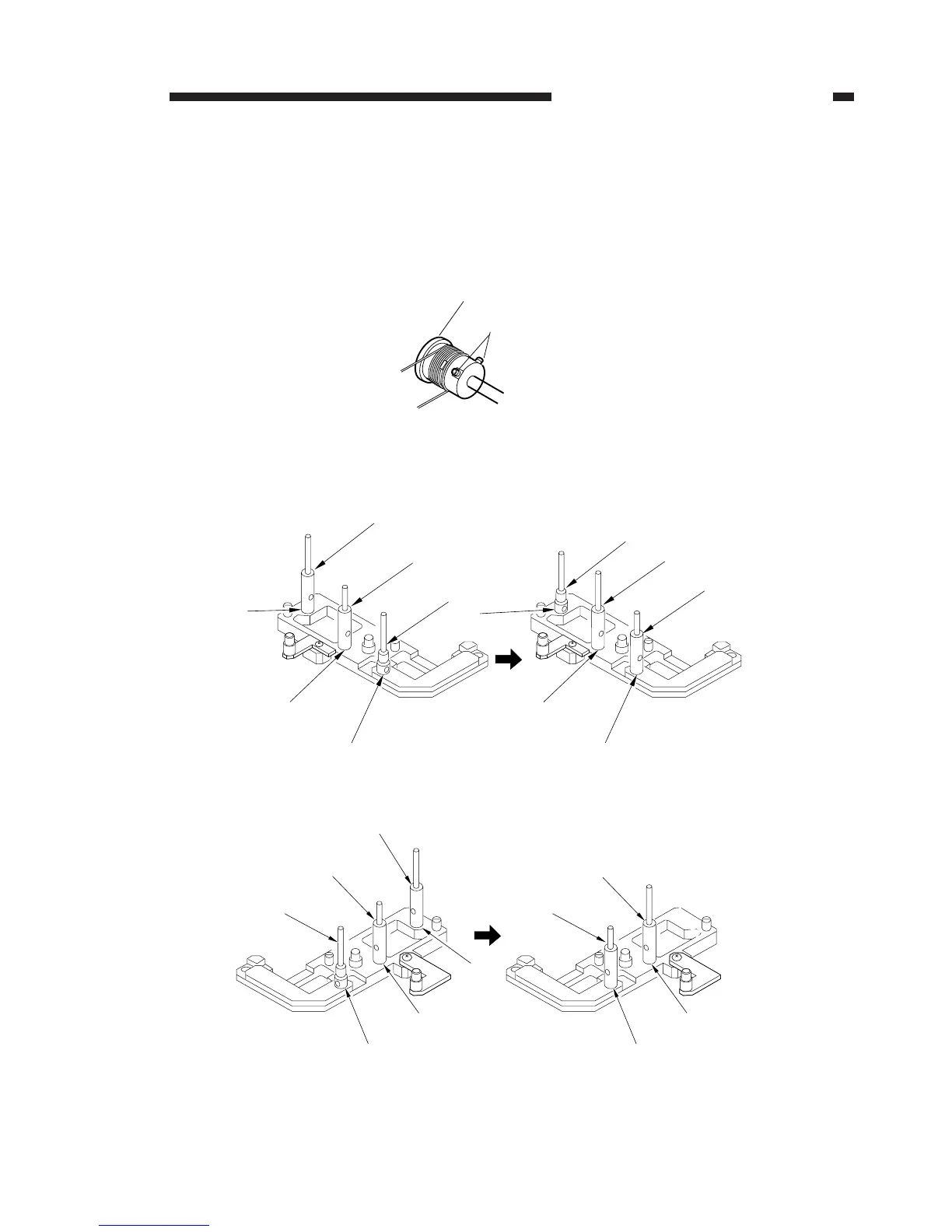

Figure 2-4
The mirror positioning tool used in the positioning of the No. 2 mirror mount is illus-
trated below.
Figure 2-5
Optical section wire pulley
Hexagonal nut
FY9-3009-040 (for rear use)
When used to adjust the No. 2 mirror mount
(for rear use)
[1]
[1]
[2]
[2]
[3]
[3]
[1]
[2]
[3]
[1]
[2]
[A]
[A]
[A]
[B]
[B]
[B]
[B]
[C]
[C]
[C]
[C]
FY9-3009-040 (for front use)
When used to adjust the No. 2 mirror mount
(for front use)
