D. Skew feed adjustment
1. Checking ADF skew feed
Compare the surface position of the DF cover and DF delivery cover to make sure
that the surface positions are correctly aligned.

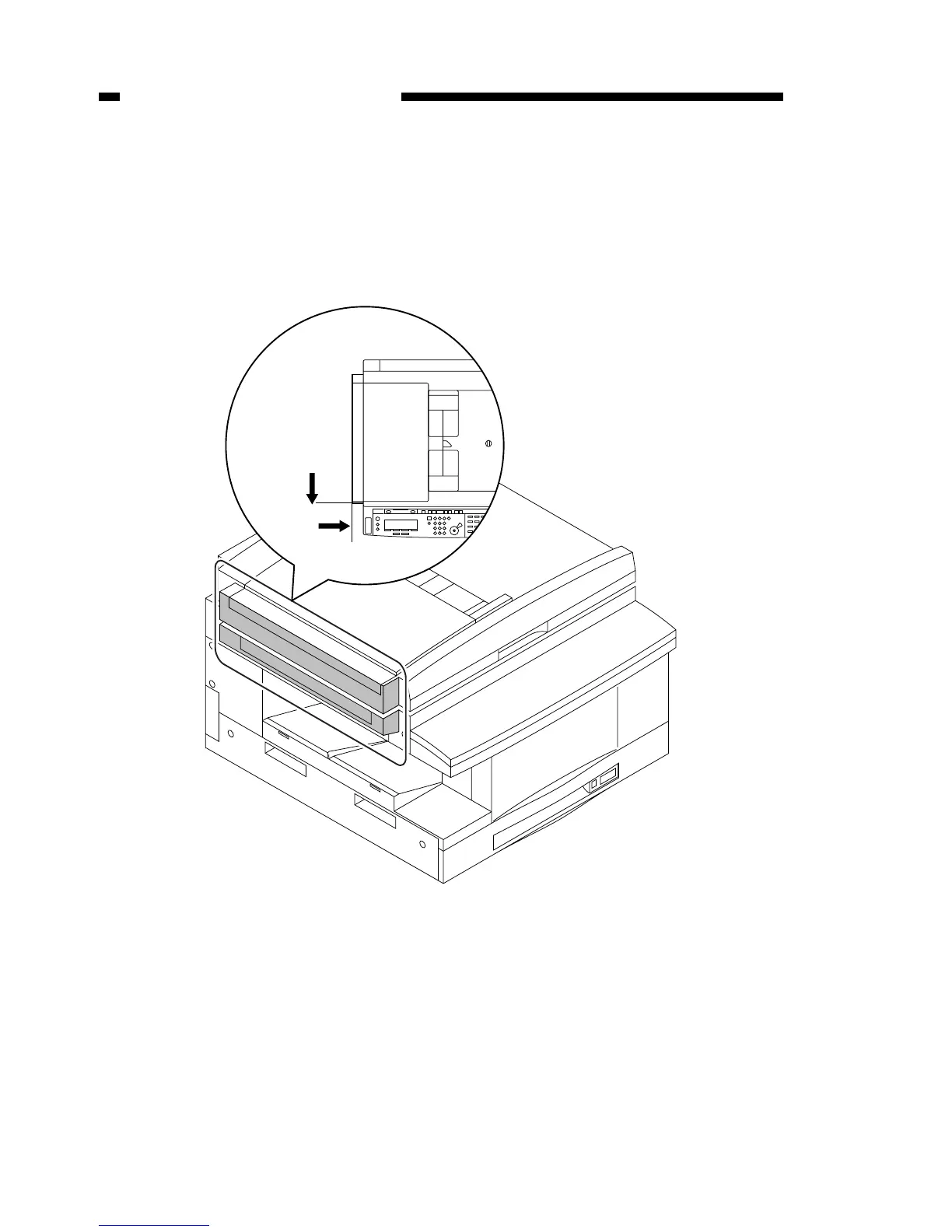

Figure 2-20
Align the surface
positions of the DF
cover and the unit.
