2-17
CHAPTER 2 STANDARDS AND ADJUSTMENTS
2. Adjusting skew feed
1) Loosen the right ADF hinge nut.
2) Use an Allen wrench to turn the adjusting screw and adjust ADF position.
3) After adjusting skew feed, tighten the nut to secure the adjusting screw.

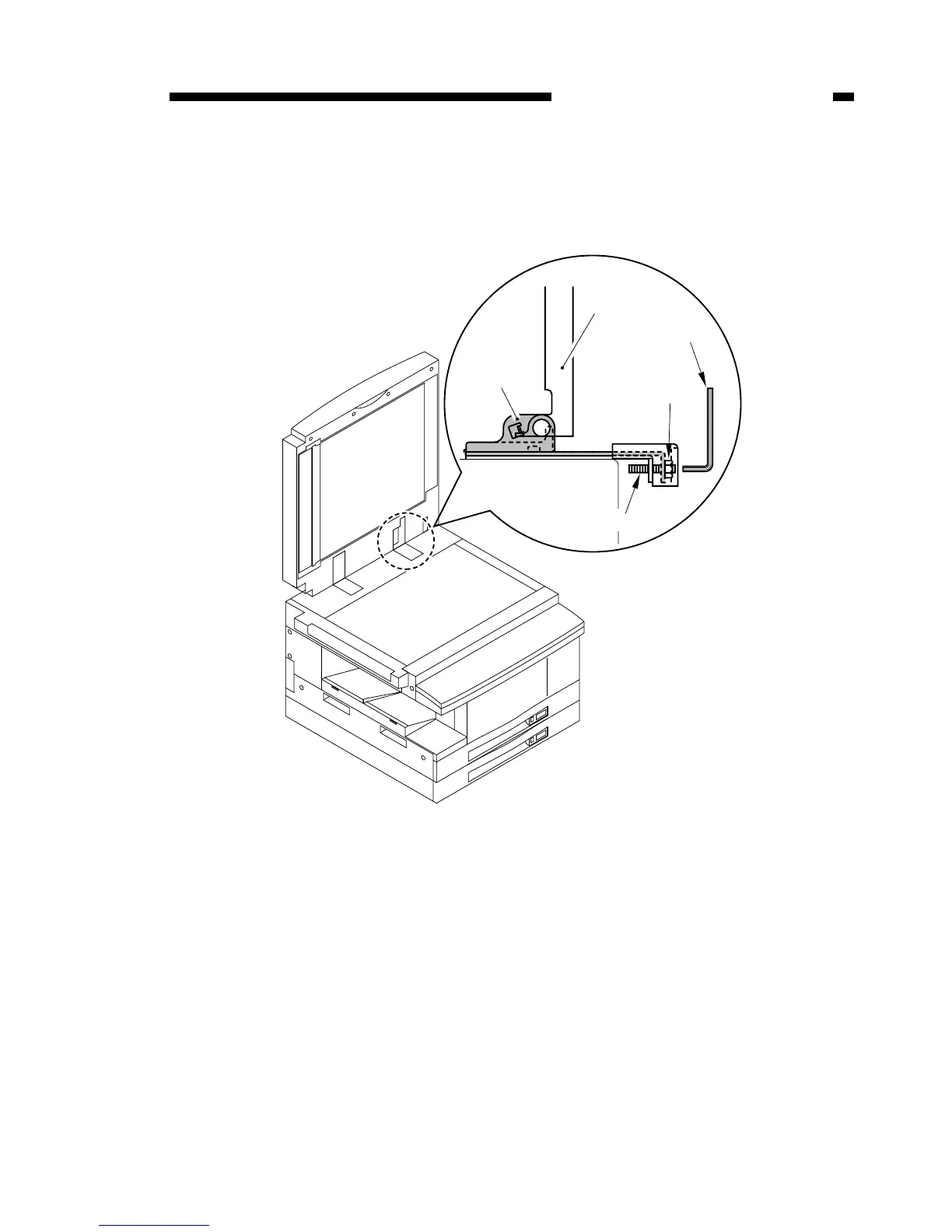

Figure 2-21
Right hinge
Stay
Allen wrench
Nut
Adjusting screw
