CHAPTER 2 STANDARDS AND ADJUSTMENTS
2-14
C. ADF height adjustment
1. Height check
Measure the clearance at the locations indicated in the diagram to check that they
meet the standard value. If the clearance length is outside the standard value, adjust the
height.

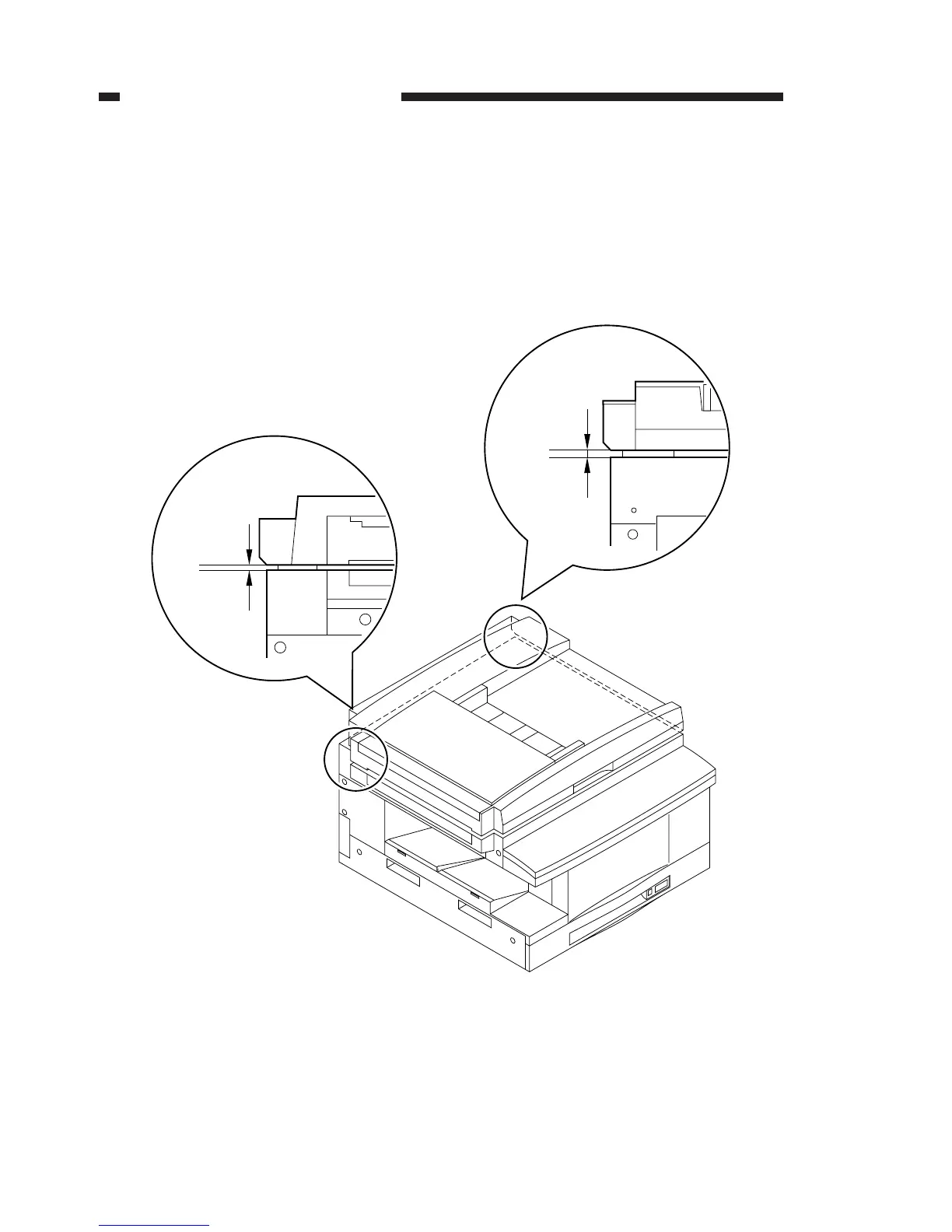

Figure 2-18
2.0mm or more
Less than 2.5mm
B
1.6mm or more
Less than 2.0mm
A
Clearance A standard: 1.6 mm or more to less than 2.0 mm.
Clearance B standard: 2.0 mm or more to less than 2.5 mm.
