B. Multi-feeder assembly
1. To remove the multi-feeder pick-
up roller
1) Remove the printer unit from the
main unit ( refer to 9-19).
2) While pressing the tab, remove the
release lever [1]. Then remove the 3
installation screws [2] and remove
the drive unit cover [3].
3) Remove the 3 installation screws [4],
then remove the right cover [5].

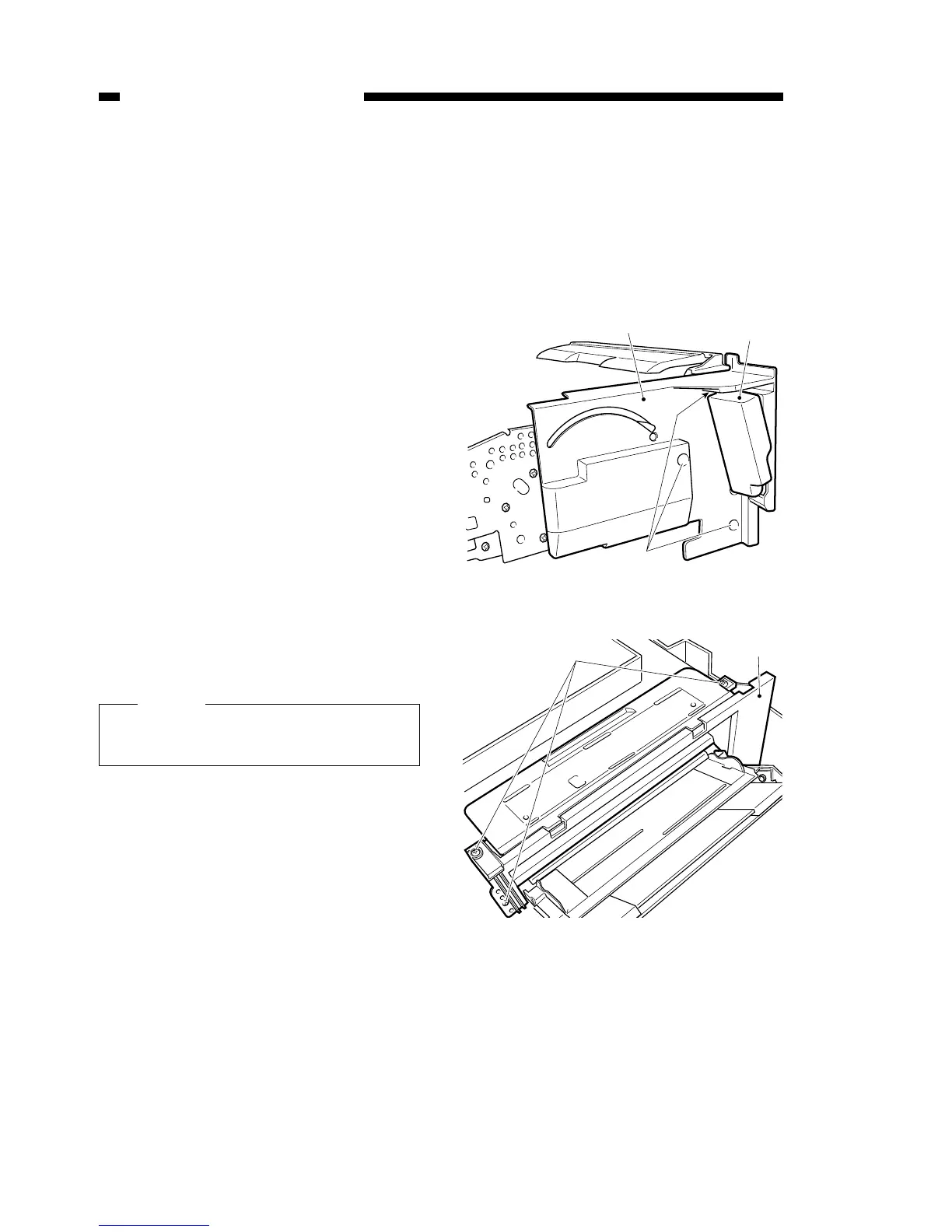

Figure 7-714
Figure 7-715
[3]
[1]
[2]
[4]
[5]
Take care not to damage the multi-
feeder paper sensor lever.
Caution:
