COPYRIGHT © 1999 CANON INC. CANON GP160 REV.0 FEB. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 PICK-UP/FEEDING SYSTEM
7-31

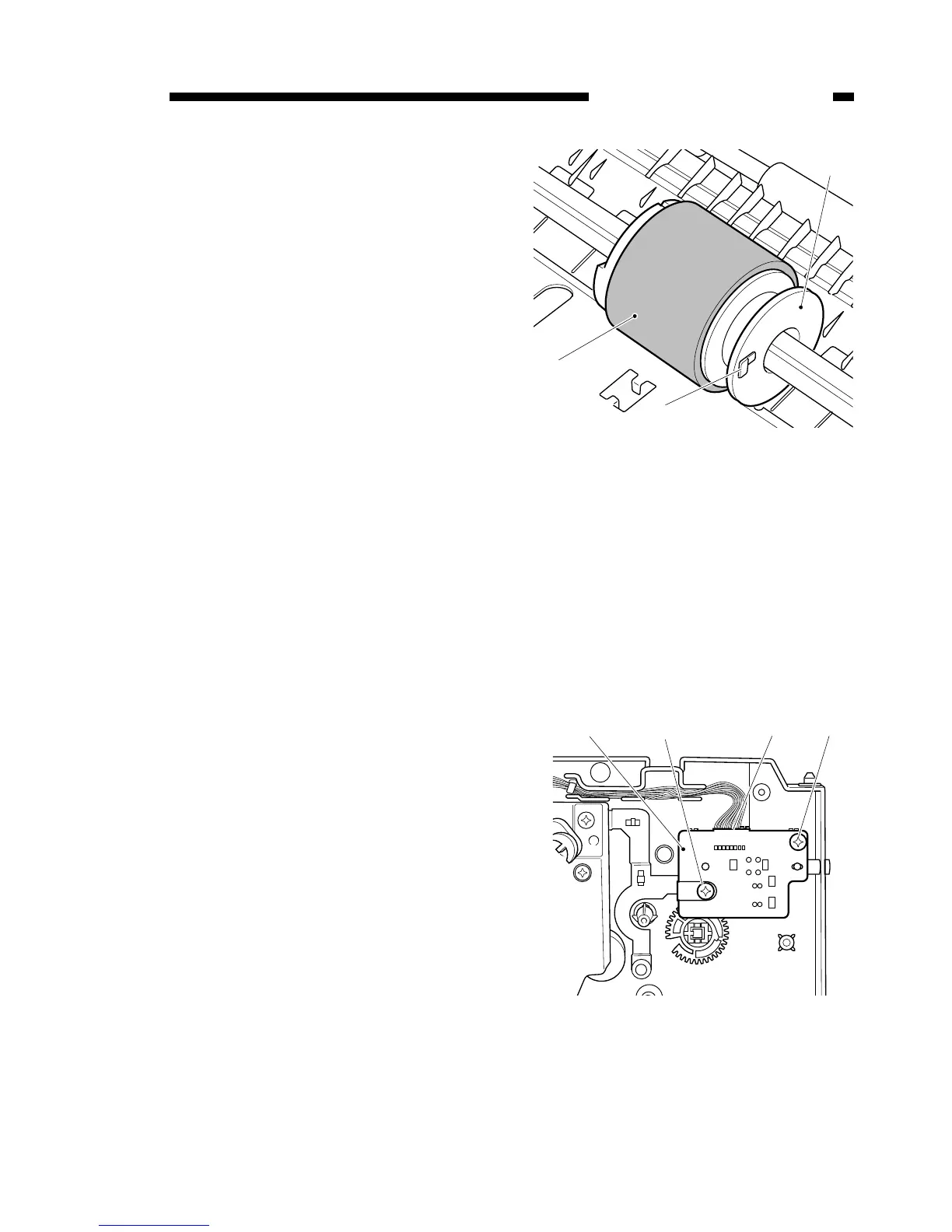

4) Unclip the rear side tab [6], slide the
roller collar [7] and remove the multi-
feeder pick-up roller [8].
2. To remove the separation pad
1) Remove the printer unit from the
main unit (Refer to 9-19).
2) Follow steps 3) to 5) of ‘3. To remove
the pick-up unit’, and remove the
multi-feeder drive unit.
3) Remove the 3 installation screws and
then remove the right cover.
4) Remove the 2 installation screws [1]
and the connector [2], then remove
the sensor PCB [3].
Figure 7-716
Figure 7-717
[8]
[7]
[6]
[1][2]
[1]
[3]
