CHAPTER 7 PICK-UP/FEEDING SYSTEM
7-32

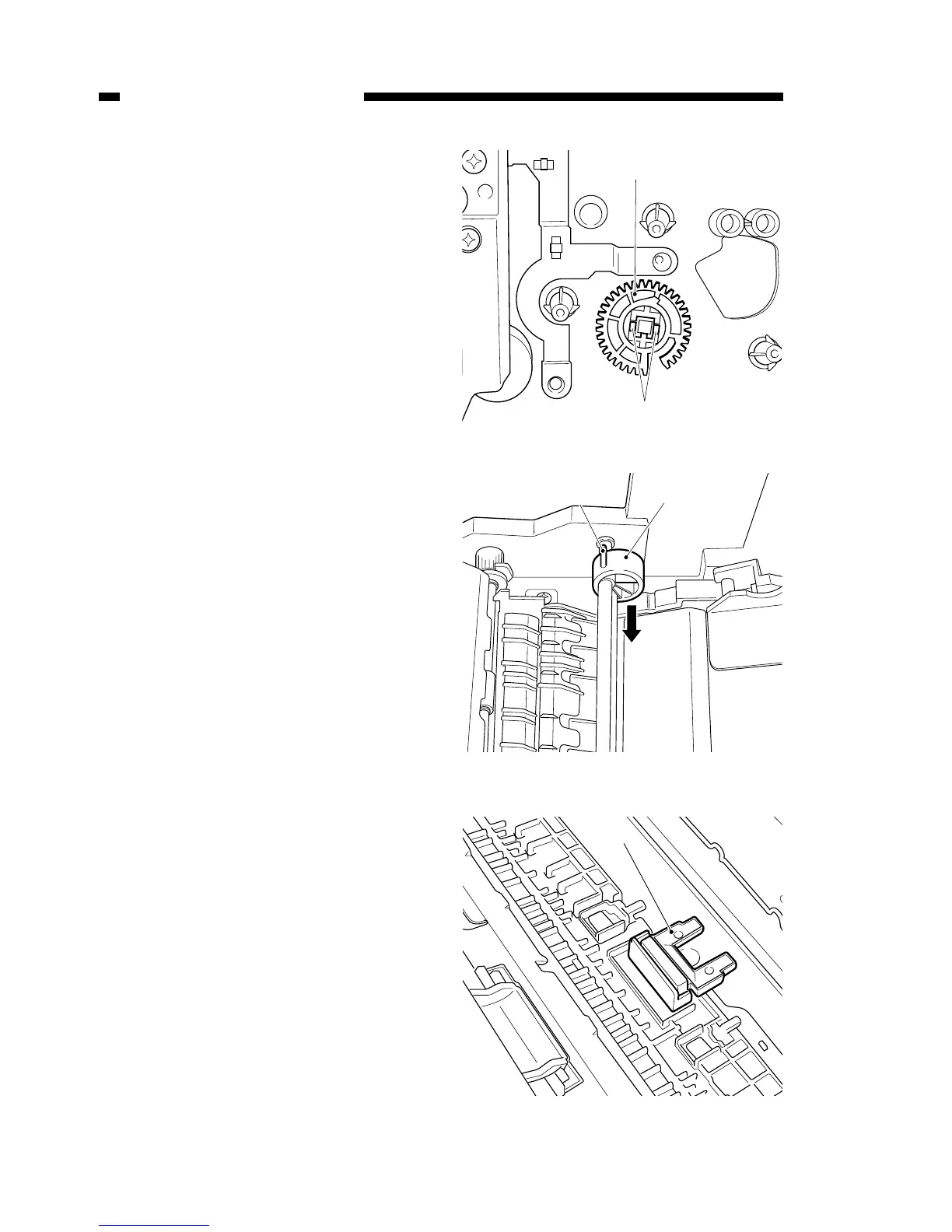

5) Widen the tabs [4] and remove the
multi-feeder pick-up axis drive gear
[5].
6) Unclip the tab [7] on the multi-feeder
pick-up axis rear lifting plate pressure
cam [6] and slide the cam to the
inside.
7) Slide the multi-feeder pick-up axis to
the rear side and remove from the
bearing.
8) Open the lifting plate, rotate the sep-
aration pad [8] and remove.
Figure 7-718
Figure 7-719
Figure 7-720
