Canon GP160DF - CCD Lens Mount Assembly

FIGURE
&
KEY NO.
PART NUMBER DESCRIPTION SERIAL NUMBER / REMARKS
R
A
N
K
Q
/
T
Y
COPYRIGHT C 1999 CANON INC. CANON 2220/2210/2200/160/3000 REV.1 FEB. 1999 PRINTED IN JAPAN [IMPRIME AU JAPON]
403 - FG6-1195-000 1 CCD LENS MOUNT ASSEMBLY
1 FB4-5448-000 1 PLATE, SHILED
2 FF5-7279-000 1 COVER, CCD
2A FB4-5461-000 2 SHEET, COVER
501 XB2-5400-609 2 SCREW,W/WASHER,M4X6
403-1

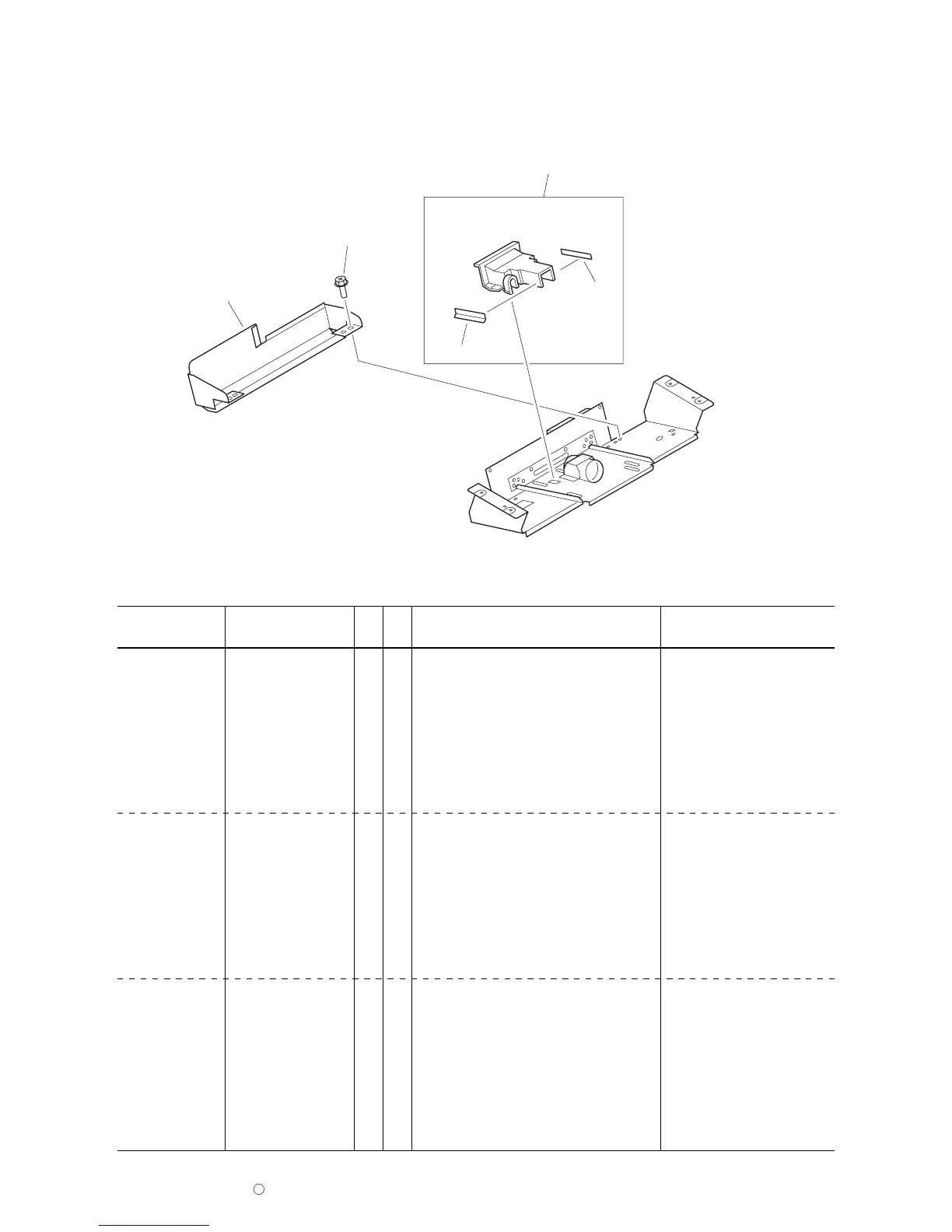

FIGURE 403
CCD LENS MOUNT ASSEMBLY
1
501
2
2A
2A
