CHAPTER 10 CASSETTE FEEDER
10-15
6) Remove the relay connector [5] and
the cord guide [6] from the front rear
side of the cassette feeder.
7) Remove the 4 screws located in the
upper-right near side and far side [7],
and remove the right foot cover
assembly [8].
8) Remove the 6 screws [9], and
remove the pick-up unit.

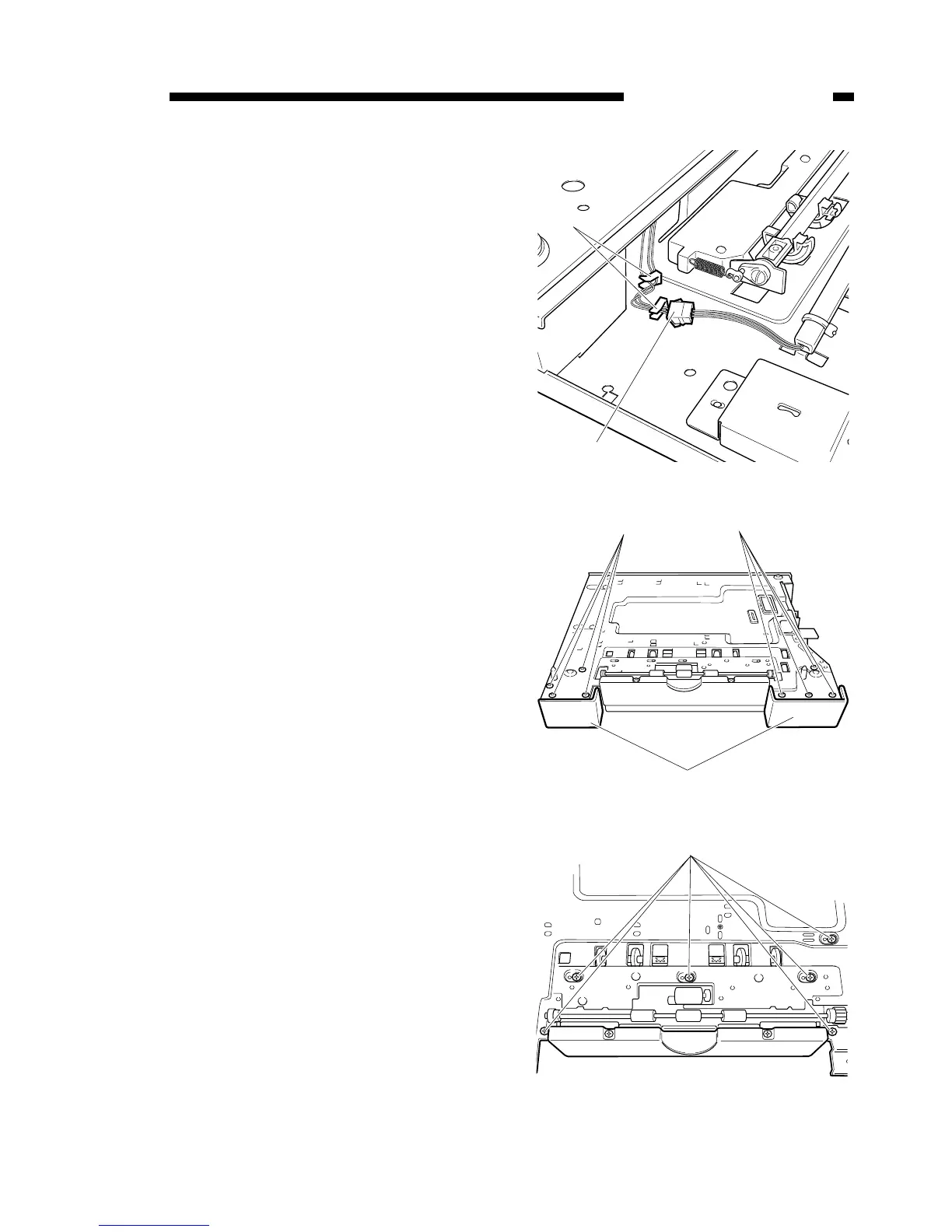

Figure 10-707
Figure 10-708
Figure 10-709
