CHAPTER 13 TROUBLESHOOTING
13-3
2. Image leading edge margin adjustment
Adjustment when the leading edge of the printed image is out of alignment.
a) Use a precision screwdriver to press down on SW401 and output a test print.
b) Turn VR401 and adjust the leading edge margin of the test print to 4.0 ± 2.0mm.

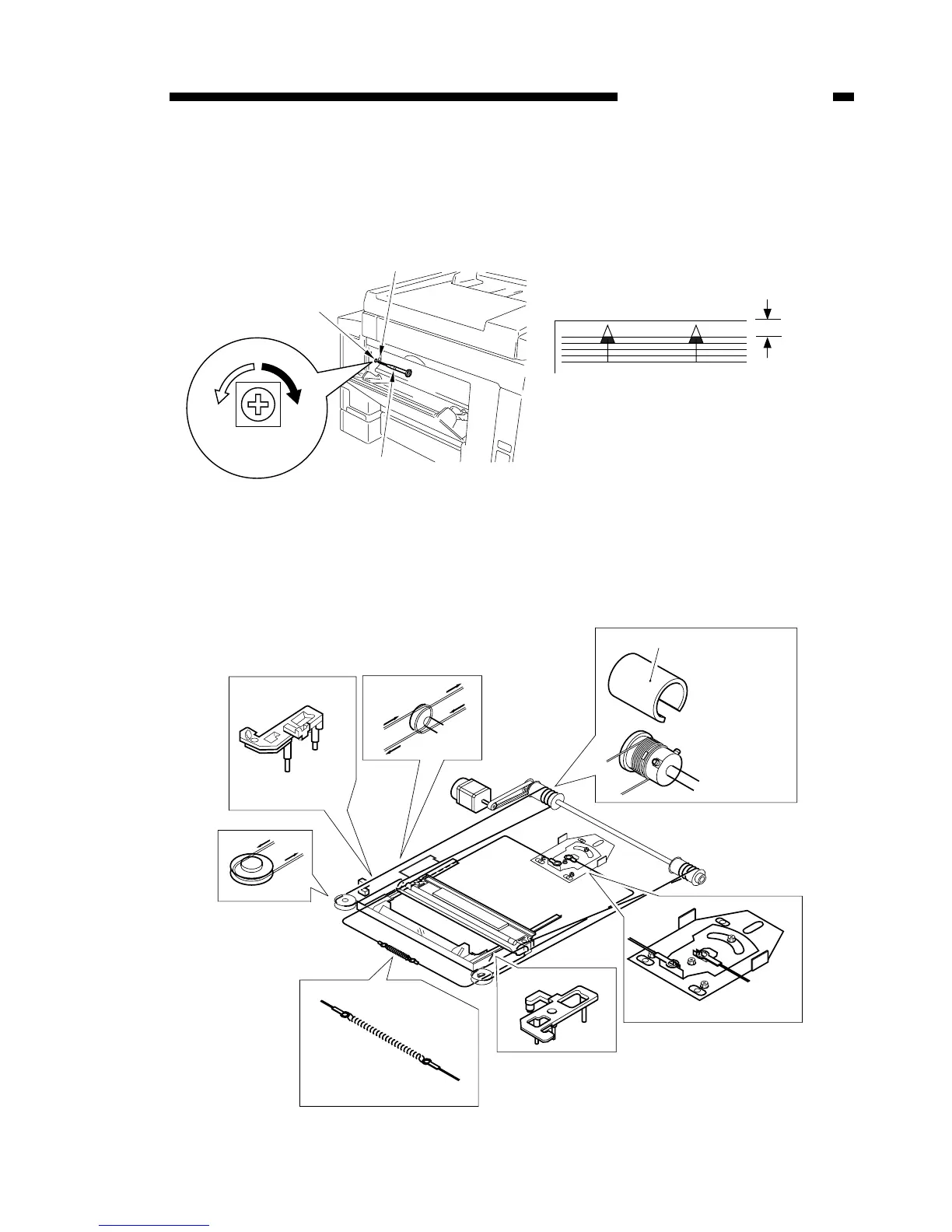

Figure 13-102
3. Attaching the scanner wire
Attach the wire, following steps 1 to 9. Then perform the mirror positioning adjust-
ment described on the next page.
Figure 13-103
Precision screwdriver (3mm)
VR401
VR401
SW401
4.0 ± 2.0mm
Pulley clip
[1]
[2]
[2]
[3]
[4]
[5]
[6]
Put the steel
ball into the
pulley hole.
Wrap the wire
2 times to the
inner side and
7 times to the
outer side.
Then, attach
the pulley clip.
Attach the mirror
positioning plate.
