CHAPTER 3 ARRANGEMENT AND FUNCTIONS OF THE ELECTRICAL PARTS
3-3
Clutch, solenoid types

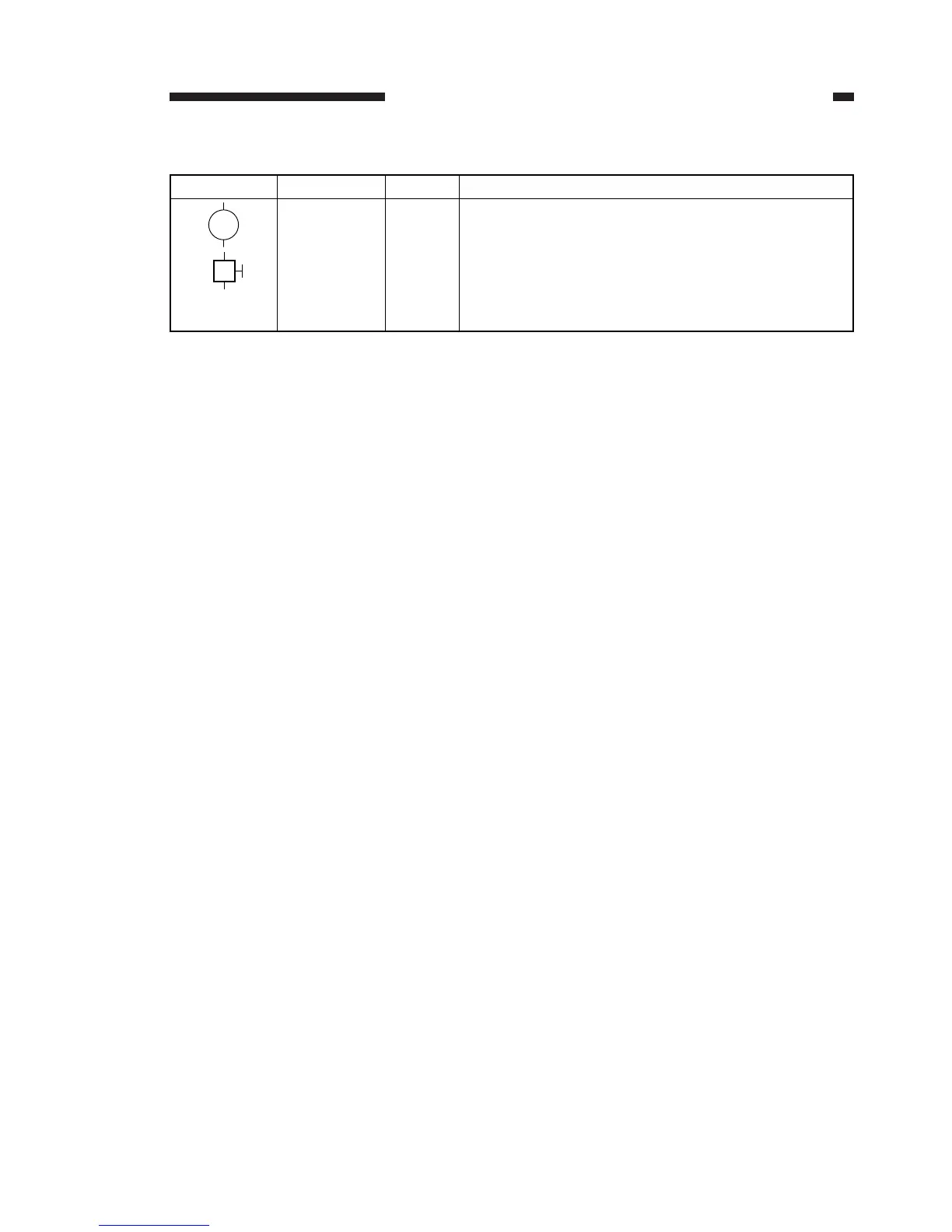

Table 3-1
Symbol Code Function
CL301 Pick-up/feeder roller drive
CL302 Registration roller drive
SL301 Main unit pick-up roller drive
SL302 Multifeeder pick-up roller drive
SL303 Completion stamp drive
SL651 Cassette feeder pick-up roller drive
Name
Clutch
Solenoid
CL
SL
