FIGURE
&
KEY NO.
PART NUMBER DESCRIPTION SERIAL NUMBER / REMARKS
R
A
N
K
Q
/
T
Y
COPYRIGHT C 1999 CANON INC. CANON 2220/2210/2200/160/3000 REV.1 FEB. 1999 PRINTED IN JAPAN [IMPRIME AU JAPON]
950 - FG3-0940-000 1 IMAGE PROCESSOR PCB ASSEMBLY 100V SEE NOTE 1
FG3-0942-000 1 IMAGE PROCESSOR PCB ASSEMBLY 120V SEE NOTE 1
FG3-0943-000 1 IMAGE PROCESSOR PCB ASSEMBLY 230V SEE NOTE 1
1 WK1-5101-000 1 BATTERY, LITHIUM BAT 1
2 WK1-5047-000 1 BATTERY, LITHIUM BAT 2
3 WS1-0172-000 1 CONNECTOR, PLUG, FEMALE JP1
4 WS1-0172-000 1 CONNECTOR, PLUG, FEMALE JP3 SEE NOTE 2
IC1 5 HH4-2642-000 1 IC, M66364FP, MPU
IC2 8 HH4-2643-000 1 IC, SLA912S-F4F, GATE ARRAY
IC2 9 FH4-5717-000 1 IC, M66354FP, GATE-ARRAY
IC3 8 HH4-3037-000 1 IC, CM7098, STANDARD CELL
IC4 1 HH4-2484-000 1 IC, UPD94111GJ-201-3EB, CMOS

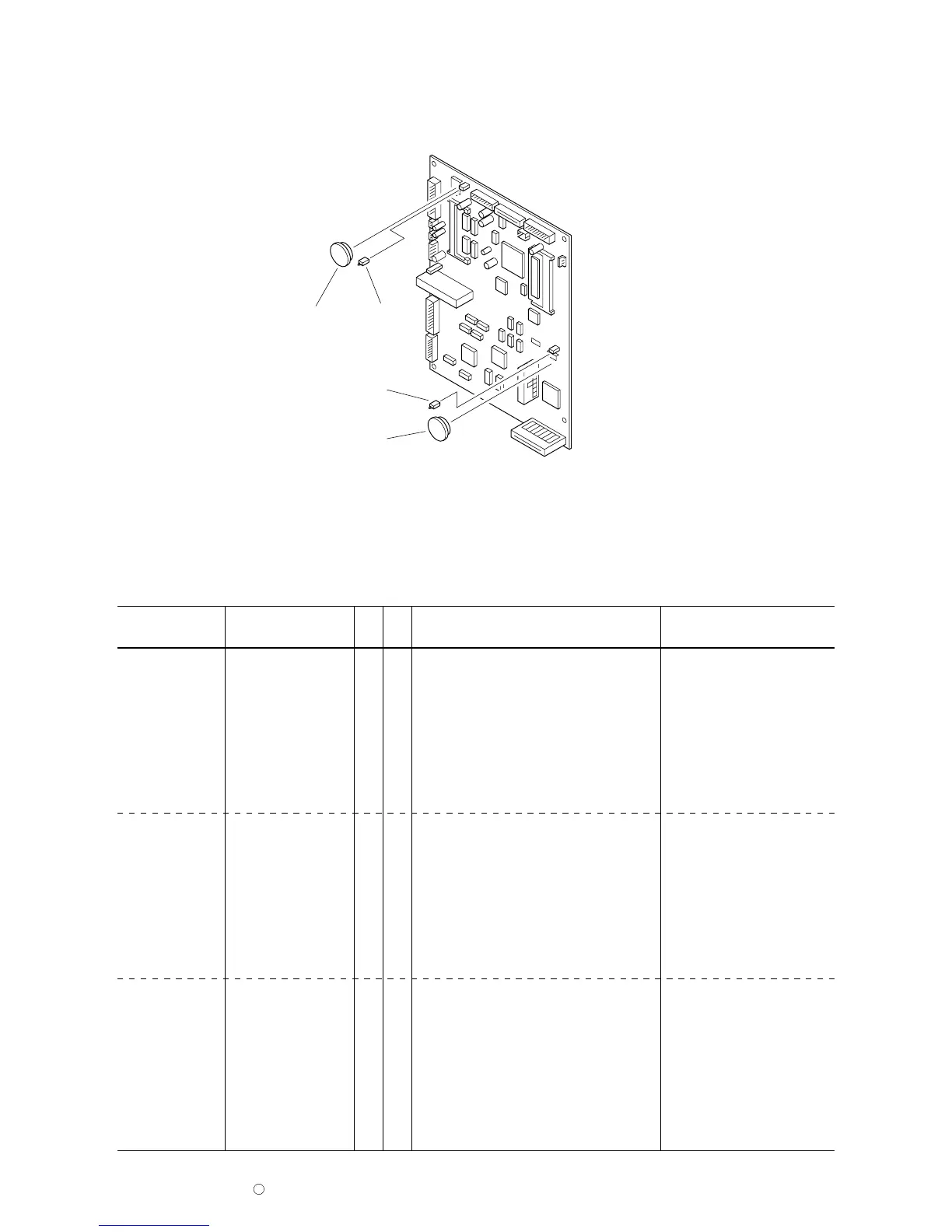

FIGURE 950
IMAGE PROCESSER PCB ASSEMBLY
NOTE1:This assembly is includes the assembly shown in Figure 940.
NOTE2:This assembly does not include the parts shown with Key No.4.
(BAT1)
(BAT2)
(JP1)
(JP3)
1
3
4
2
950-1
