Technology > Pickup / Feed System > Pick-up Area Control/Function > Lifter control
Technology > Pickup / Feed System > Pick-up Area Control/Function > Lifter control
Pick-up Area Control/Function
This machine uses an air-pickup method and provides the double-feeding prevention and a
high-speed & stable pickup.
Replacement of a pickup roller is required as a consumable part for the conventional roller-
pickup method.
However, the air pickup method does not require any parts replacement and so improves the
durability of the device.
Adjusting airow according to the condition can deals with thin paper, thick paper and coated
paper.

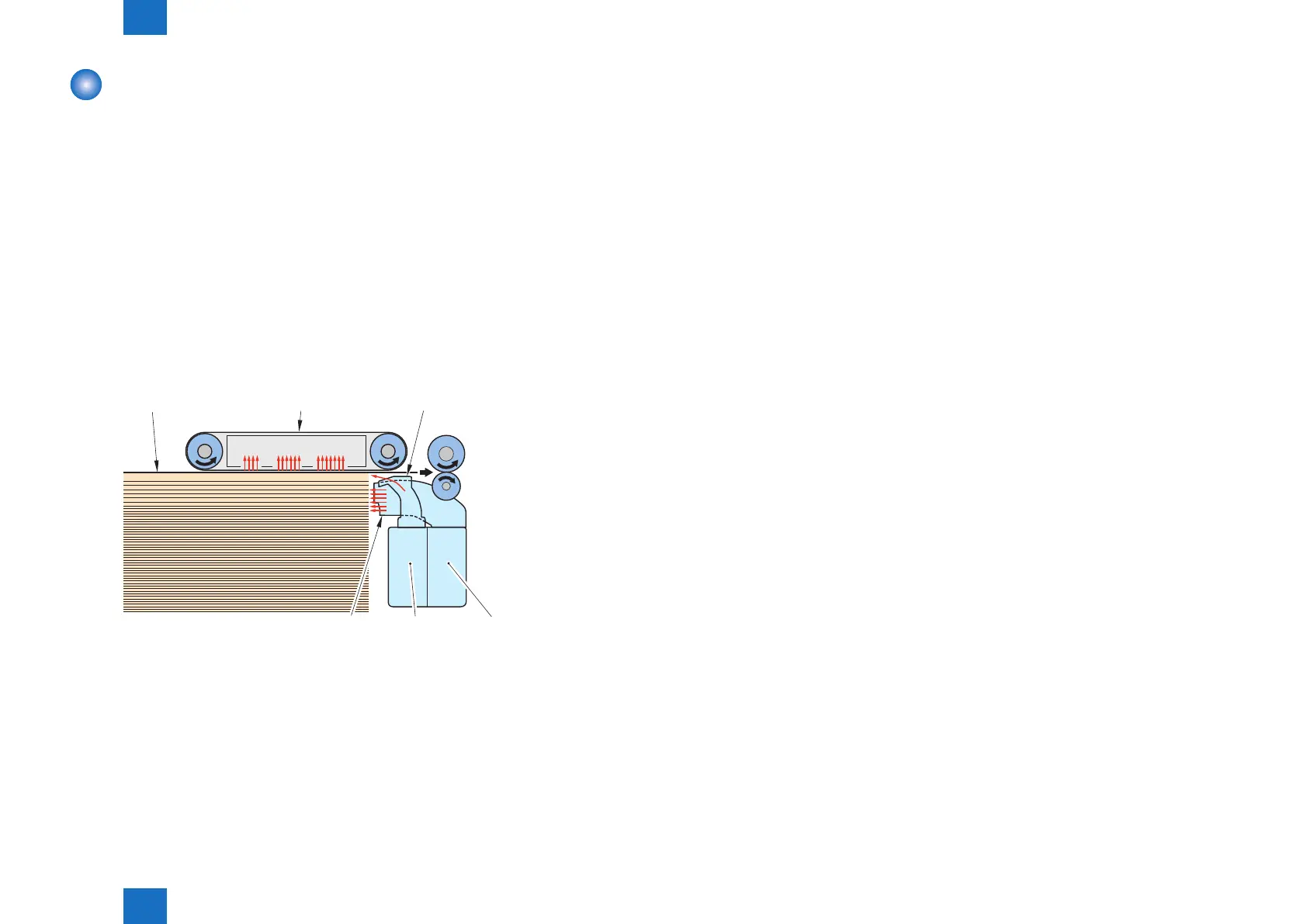

The airow from the oatation nozzle oats the paper, so that the paper can be attracted to
the suction belt.
At the same time, the airow from the separation nozzle separates the paper and only the top
sheet is attracted to the suction belt.
The attracted paper is fed to the feeding path by the rotating suction belt.
Paper Suction belt Separation nozzle
Floatation
nozzle
Separation
air duct
Floatation
air duct
F-2-118
■
Lifter control
Lifter is driven by lifter motor through lifter wire. By changing the rotation direction on the lifter
motor, the lifter moves up or down.
●
Upward movement control
1. If both deck switch and storage close sensor are on, it is judged that the deck has been set,
and the lifter goes up.
2. The paper surface is monitored through the paper surface sensor 1, the paper surface
sensor 2, the intermediate paper surface sensor, the lifter will stop moving when the paper
lever reaches the lower limit of the pickup available area.
Protection function
• Considering the situation when the lifter keeps moving up even of the lifter upper limit
sensor is turned OFF, there is lower limit switch to prevent damage of the machine caused
by lifter abnormal movement (moving up).
• When some foreign material in the paper stock assembly hits the ceiling, the machine
employs the foreign particle sensor to prevent damage to the lifter wire, resin gear, etc.
●
Downward movement control
1. If the open button of front deck cover is pressed, lifter starts to move downward.
2. The lifter continues to move down until it passes the sensor ag of storage supply position
sensor. (sensor OFF→ON→OFF)
3. If the paper is supplied in this point, since the sensor ag of storage supply position sensoe
is pushed by the paper, the lifter goes further down to the point where the newly supplied
stack of paper passes the sensor ag.
4. Each time paper is supplied, the lifter repeats moving down to the position where the lifter
lower position sensor is turned ON (maximum level for paper supply).
Protection function
• Considering the situation when the lifter keeps moving down even of the lifter lower position
sensor is turned ON, there is lower limit switch to prevent damage of the machine caused
by lifter abnormal movement (moving up).
To Next Page
