Parts Replacement and Cleaning > Periodic Replacing Parts, Durable Parts, Cleaning Parts > Points to note when installing the Primary Charging Assembly
Parts Replacement and Cleaning > Periodic Replacing Parts, Durable Parts, Cleaning Parts > Points to note when installing the Primary Charging Assembly
Points to note when installing the Primary Charging Assembly
Be sure to perform the following operation before installing the Primary Charging Assembly to the host machine.

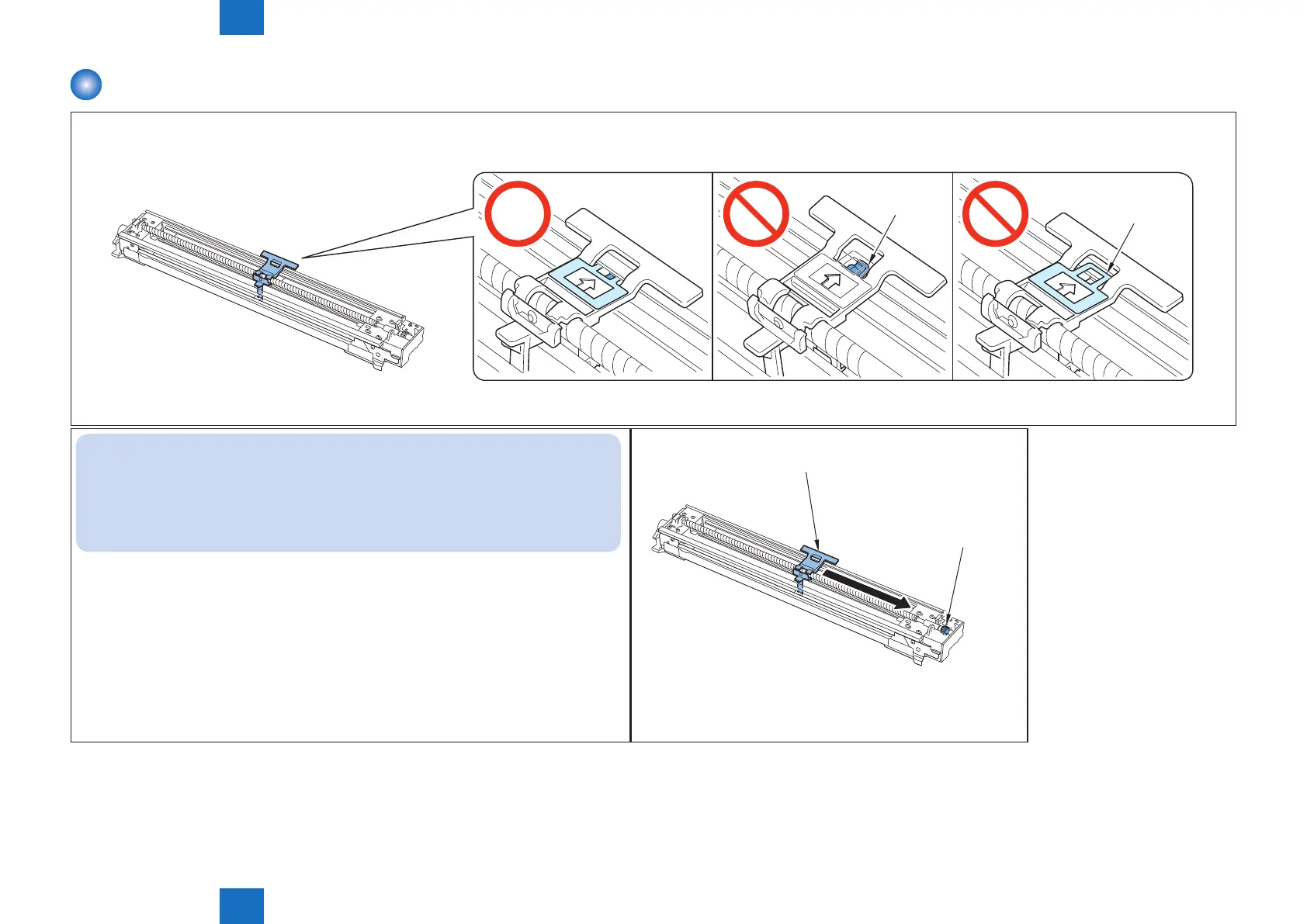

1) Make sure that the protrusion [A] area of Cleaning Pad Arm and the lead edge [B] area of Primary Anti-vibration Sheet are îš¿tted into the groove of the frame on Primary Charging Assembly. If not, îš¿t the [A]
area and [B] area into the groove of the frame.
[A]
[B]
F-4-304
MEMO :
• If the protrusion [A] area of Cleaning Pad Arm is not tted into the groove of the frame,
the Cleaning Pad Arm cannot move to the front of the Primary Charging Assembly and
Cleaning Pad movement detection error: E060-0101 (E060-0102) will occur.
• If the lead edge [B] area of Primary Anti-vibration Sheet is not tted into the groove of
the frame, Primary Charging Wire will not be cleaned evenly.
2) Turn the gear and move the Cleaning Pad Arm to the front.
Cleaning Pad Arm
Gear
F-4-305
To Next Page
