Parts Replacement and Cleaning > PCB > Removing Secondary Transfer Static Eliminator PCB
Parts Replacement and Cleaning > PCB > Removing Secondary Transfer Static Eliminator PCB
Removing Secondary Transfer Static Eliminator PCB
<Preparation>
1) Open the Front Left Cover and the Front Right
Cover.
(Refer to page 4-54)
2) Pull Out Fixing Feed Unit.
(Refer to page 4-120)
3) Remove Secondary Transfer Outer Unit.
(Refer to page 4-86)
1) Remove the grounding wire.
• 1 screw

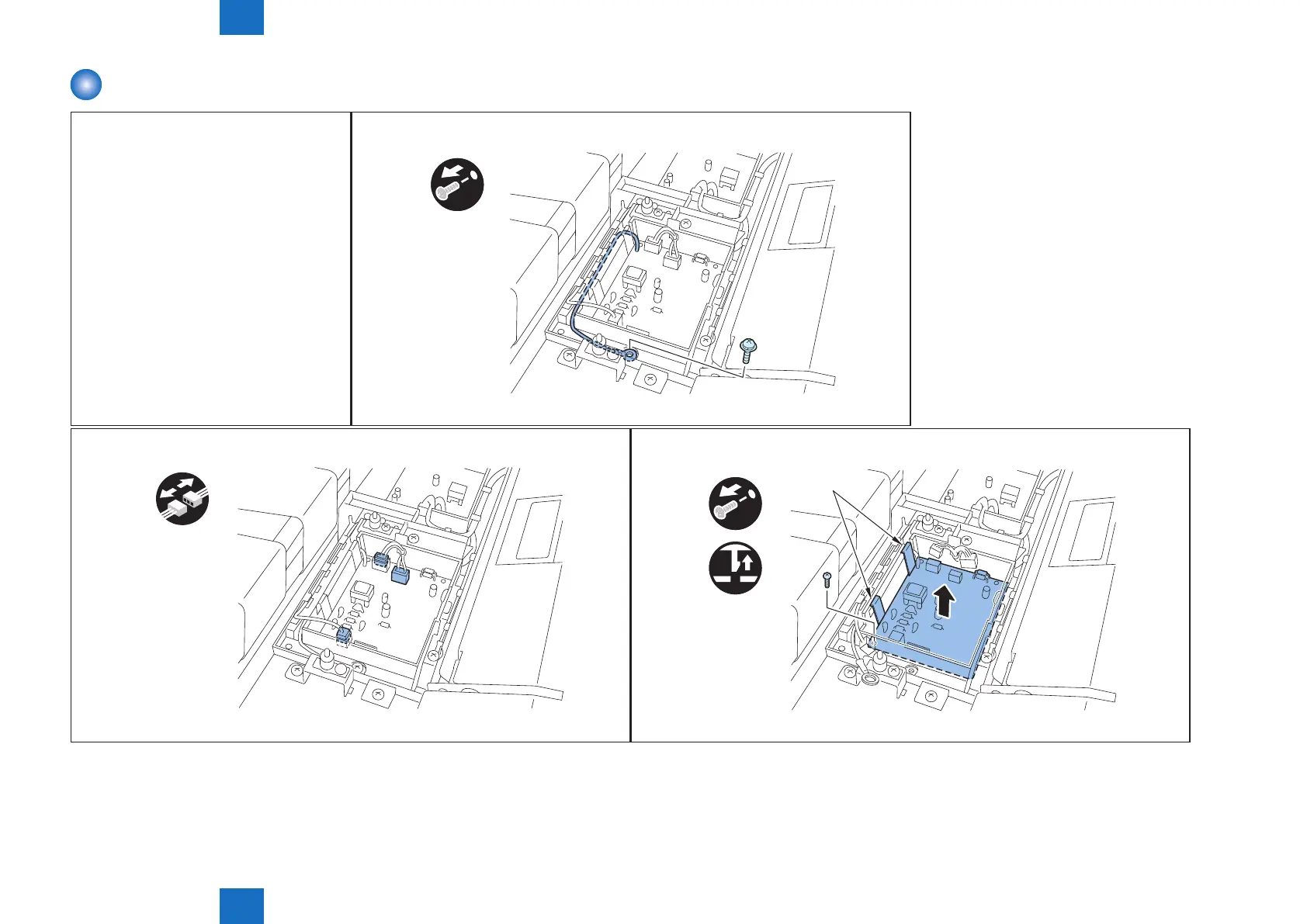

F-4-864
2) Remove the 3 connectors
x3
F-4-865
3) Remove the secondary transfer static eliminator PCB after removing the claws in 2 places.
• 1 screw
x2
Claw
F-4-866
